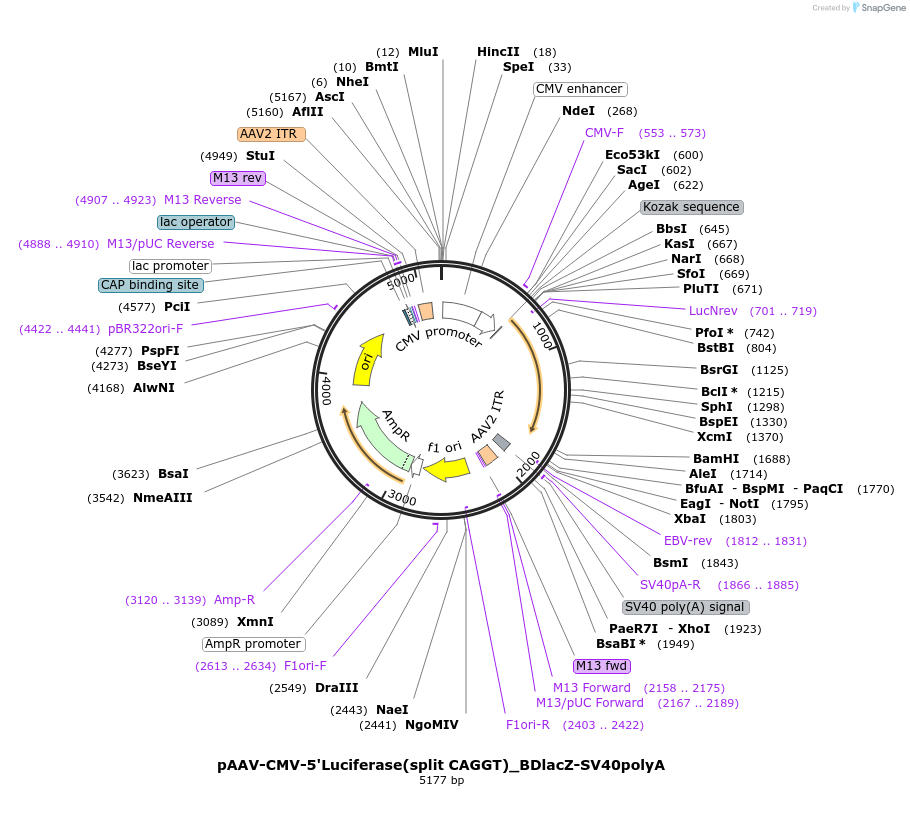

pAAV-CMV-5'Luciferase(split CAGGT)_BDlacZ-SV40polyA
(Plasmid #216320)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 216320 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pAAV2.1
  • Total vector size (bp) 5177
  • Vector type
    AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Split Luciferase + splice donor site
  • Species
    Synthetic
  • Insert Size (bp)
    1159
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site SacI (not destroyed)
  • 3′ cloning site XbaI (not destroyed)
  • 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
  • 3′ sequencing primer Gggaattcgcccttaactcgagaac
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-CMV-5'Luciferase(split CAGGT)_BDlacZ-SV40polyA was a gift from Elvir Becirovic (Addgene plasmid # 216320 ; http://n2t.net/addgene:216320 ; RRID:Addgene_216320)

  • For your References section:

    mRNA trans-splicing dual AAV vectors for (epi)genome editing and gene therapy. Riedmayr LM, Hinrichsmeyer KS, Thalhammer SB, Mittas DM, Karguth N, Otify DY, Bohm S, Weber VJ, Bartoschek MD, Splith V, Brummer M, Ferreira R, Boon N, Wogenstein GM, Grimm C, Wijnholds J, Mehlfeld V, Michalakis S, Fenske S, Biel M, Becirovic E. Nat Commun. 2023 Oct 18;14(1):6578. doi: 10.1038/s41467-023-42386-0. 10.1038/s41467-023-42386-0 PubMed 37852949
