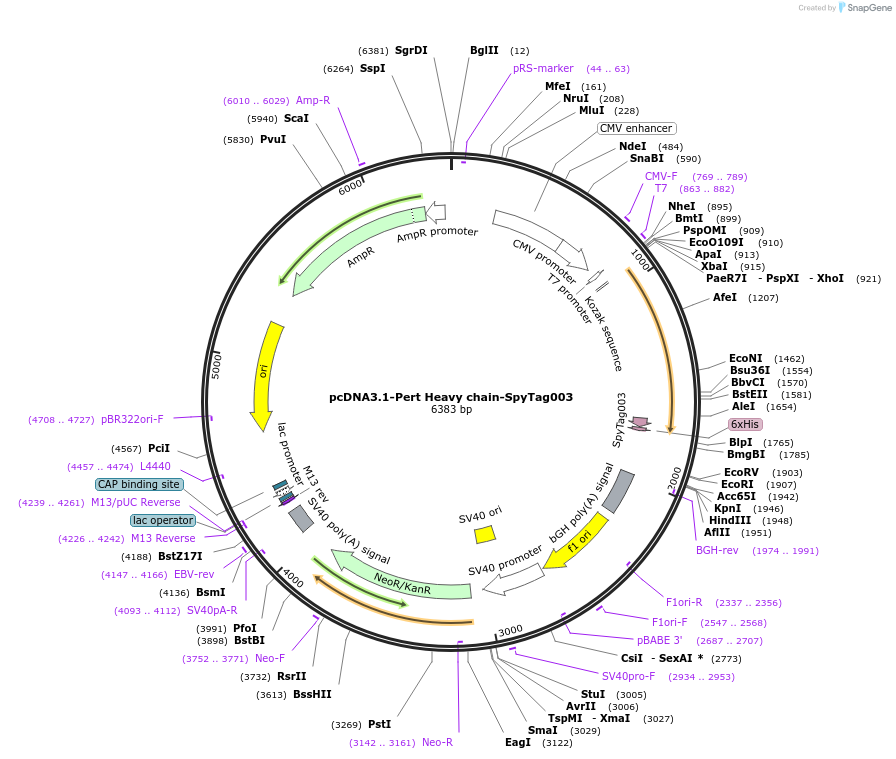

pcDNA3.1-Pert Heavy chain-SpyTag003
(Plasmid #216309)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 216309 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA3.1
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5428
  • Total vector size (bp) 6238
  • Vector type
    Mammalian Expression, Affinity Reagent/ Antibody
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    H2-18 Heavy chain-SpyTag003
  • Species
    Synthetic
  • Insert Size (bp)
    819
  • Promoter T7 promoter
  • Tags / Fusion Proteins
    • Signal peptide (N terminal on insert)
    • SpyTag003 (C terminal on insert)
    • His6 tag (C terminal on insert)

Cloning Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3.1-Pert Heavy chain-SpyTag003 was a gift from Mark Howarth (Addgene plasmid # 216309 ; http://n2t.net/addgene:216309 ; RRID:Addgene_216309)

  • For your References section:

    SpyMask enables combinatorial assembly of bispecific binders. Driscoll CL, Keeble AH, Howarth MR. Nat Commun. 2024 Mar 16;15(1):2403. doi: 10.1038/s41467-024-46599-9. 10.1038/s41467-024-46599-9 PubMed 38493197
