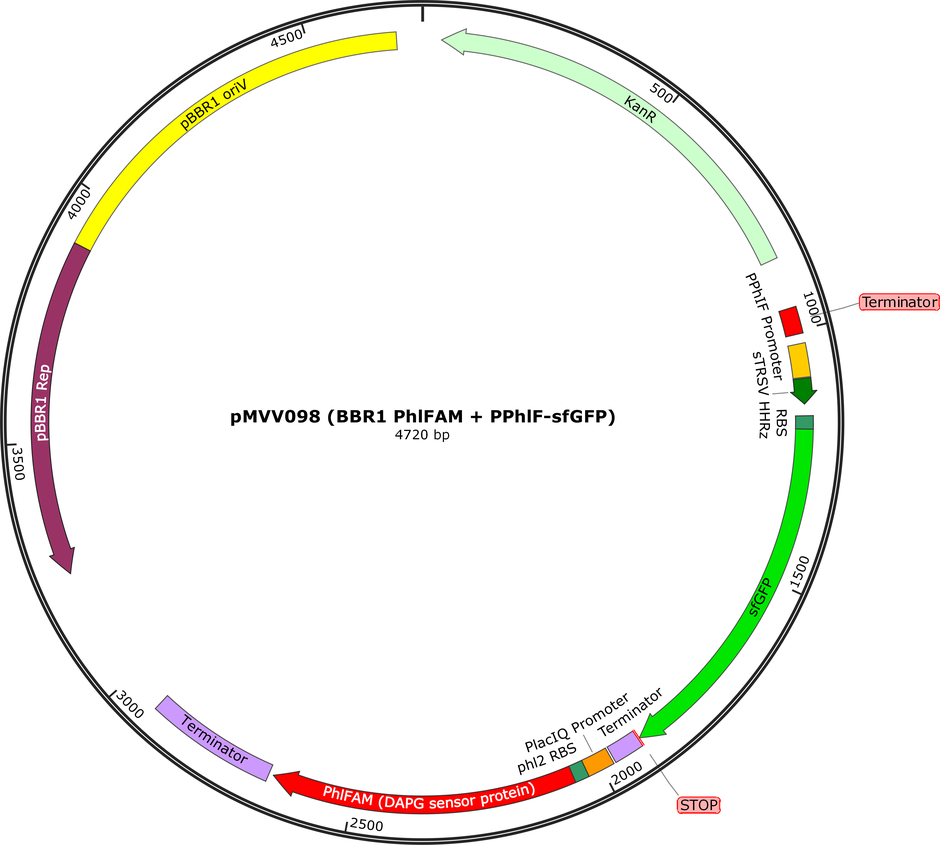

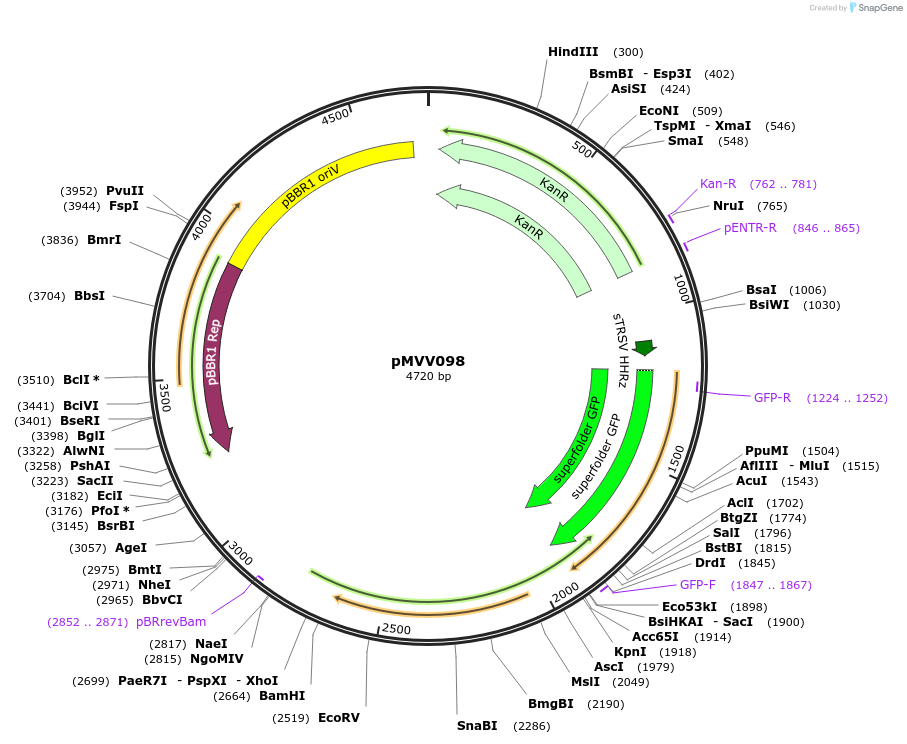

pMVV098
(Plasmid #215304)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 215304 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    BBR1
  • Backbone size w/o insert (bp) 4000
  • Total vector size (bp) 4720
  • Modifications to backbone
    Constitutive PhIFAM expression
  • Vector type
    Bacterial Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    sfGFP
  • Species
    Synthetic
  • Insert Size (bp)
    711
  • Promoter PPhIF
  • Tag / Fusion Protein
    • None

Cloning Information

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    Optimized induction cassettes were cloned from the Marionette sensor collection into broad host origin BBR1: https://www.addgene.org/kits/marionette-sensor-collection/ https://doi.org/10.1038/s41589-018-0168-3

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pMVV098 was a gift from Brian Pfleger (Addgene plasmid # 215304 ; http://n2t.net/addgene:215304 ; RRID:Addgene_215304)

  • For your References section:

    Synthetic Biology Toolbox for Nitrogen-Fixing Soil Microbes. Venkataraman M, Ynigez-Gutierrez A, Infante V, MacIntyre A, Fernandes-Junior PI, Ane JM, Pfleger B. ACS Synth Biol. 2023 Dec 15;12(12):3623-3634. doi: 10.1021/acssynbio.3c00414. Epub 2023 Nov 21. 10.1021/acssynbio.3c00414 PubMed 37988619
