GB4807
(Plasmid
#215273)
-
PurposeModule for the expressino of the N. nambi HISPS gene under the PNOS promoter and the constitutive expression of EGFP and p19.
-
Depositing Lab
-

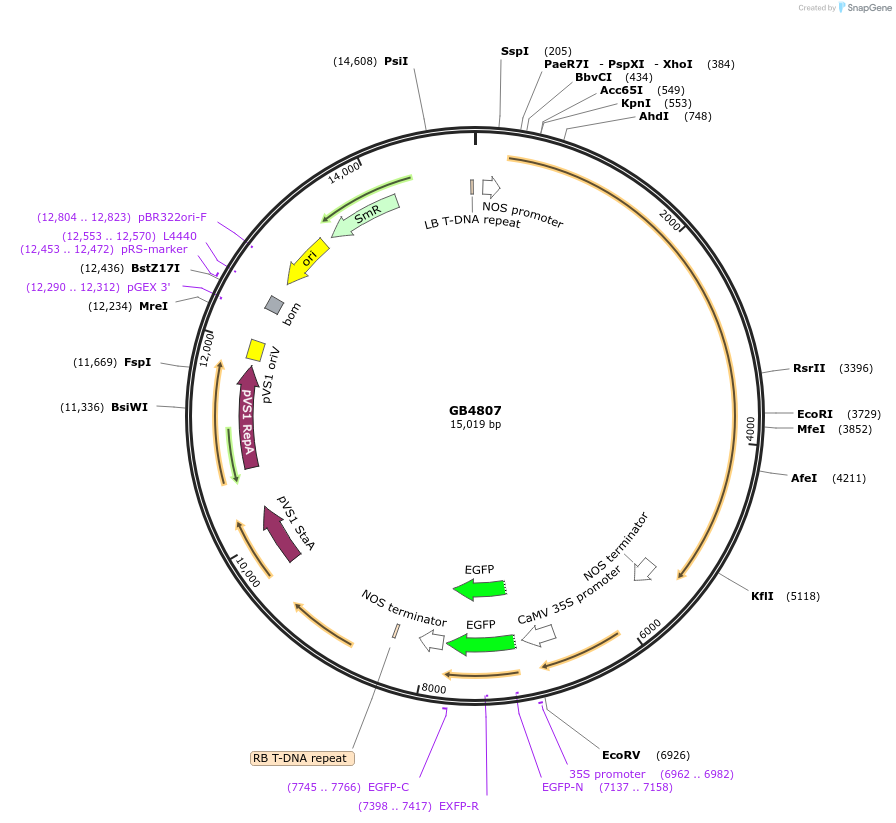

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 215273 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepDGB3_omega1
-
Backbone manufacturerself-made; derived from pCambia1302 generated at the Cambia Institute
-
Vector typeSynthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Spectinomycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namePNOS:HISPS-SF-EGFP-p19
-
SpeciesSynthetic
-
MutationBsaI and BsmBI sites removed
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BsmBI (destroyed during cloning)
- 3′ cloning site BsmBI (destroyed during cloning)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
GB4807 was a gift from Diego Orzaez (Addgene plasmid # 215273 ; http://n2t.net/addgene:215273 ; RRID:Addgene_215273) -
For your References section:
A quantitative autonomous bioluminescence reporter system with a wide dynamic range for Plant Synthetic Biology. Calvache C, Vazquez-Vilar M, Moreno-Gimenez E, Orzaez D. Plant Biotechnol J. 2024 Jan;22(1):37-47. doi: 10.1111/pbi.14146. Epub 2023 Oct 26. 10.1111/pbi.14146 PubMed 37882352
