pLX304_miRFP670nano-P2A-ERM-gCam6f
(Plasmid #214927)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 214927 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

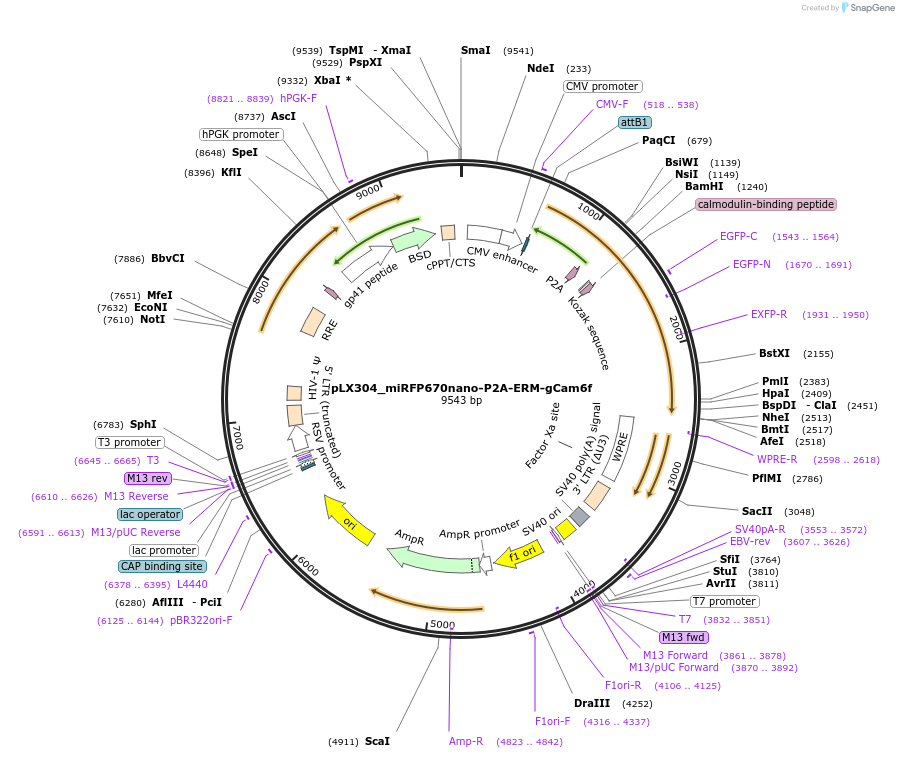

Backbone

  • Vector backbone
    pLX304
  • Backbone manufacturer
    lentiviral Gateway destination vector
  • Backbone size w/o insert (bp) 7661
  • Total vector size (bp) 9543
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Blasticidin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    miRFP670nano-P2A-ERM-gCam6f
  • Alt name
    miRFP670nano
  • Alt name
    gCaMP6f
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1881
  • Promoter CMVp

Cloning Information

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    pLX304 vector backbone is the gift from Alice Y. Ting (Stanford).

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLX304_miRFP670nano-P2A-ERM-gCam6f was a gift from Xinnan Wang (Addgene plasmid # 214927 ; http://n2t.net/addgene:214927 ; RRID:Addgene_214927)

  • For your References section:

    A mitochondrial inside-out iron-calcium signal reveals drug targets for Parkinson's disease. Bharat V, Durairaj AS, Vanhauwaert R, Li L, Muir CM, Chandra S, Kwak CS, Le Guen Y, Nandakishore P, Hsieh CH, Rensi SE, Altman RB, Greicius MD, Feng L, Wang X. Cell Rep. 2023 Dec 26;42(12):113544. doi: 10.1016/j.celrep.2023.113544. Epub 2023 Dec 6. 10.1016/j.celrep.2023.113544 PubMed 38060381
