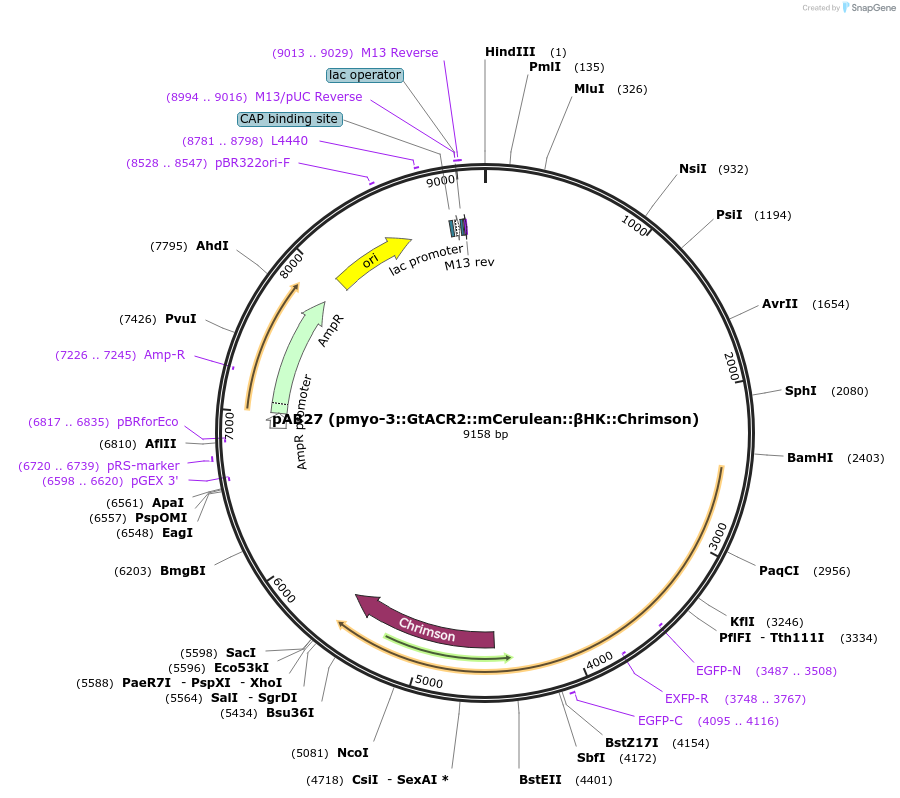

pAB27 (pmyo-3::GtACR2::mCerulean::βHK::Chrimson)
(Plasmid #214890)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 214890 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pDD96.52
  • Backbone manufacturer
    Fire Lab
  • Backbone size w/o insert (bp) 4620
  • Total vector size (bp) 7691
  • Vector type
    Worm Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    GtACR2_mCerulean_bHK_Chrimson
  • Species
    Synthetic
  • Insert Size (bp)
    3071
  • Tag / Fusion Protein
    • mCerulean

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    Peter Hegemann

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAB27 (pmyo-3::GtACR2::mCerulean::βHK::Chrimson) was a gift from Alexander Gottschalk (Addgene plasmid # 214890 ; http://n2t.net/addgene:214890 ; RRID:Addgene_214890)
  • For your References section:

    All-optical closed-loop voltage clamp for precise control of muscles and neurons in live animals. Bergs ACF, Liewald JF, Rodriguez-Rozada S, Liu Q, Wirt C, Bessel A, Zeitzschel N, Durmaz H, Nozownik A, Dill H, Jospin M, Vierock J, Bargmann CI, Hegemann P, Wiegert JS, Gottschalk A. Nat Commun. 2023 Apr 6;14(1):1939. doi: 10.1038/s41467-023-37622-6. 10.1038/s41467-023-37622-6 PubMed 37024493
