pACEBac1-PSMB1-PSMB2-PSMB3-PSMB4-PSMB5-PSMB6-PSMB7-TEV-2xSTII
(Plasmid
#214139)
-
PurposeInsect cell expression of human 20S CP beta-subunits with a c-terminal twin-strep-tag on beta2
-
Depositing Lab
-

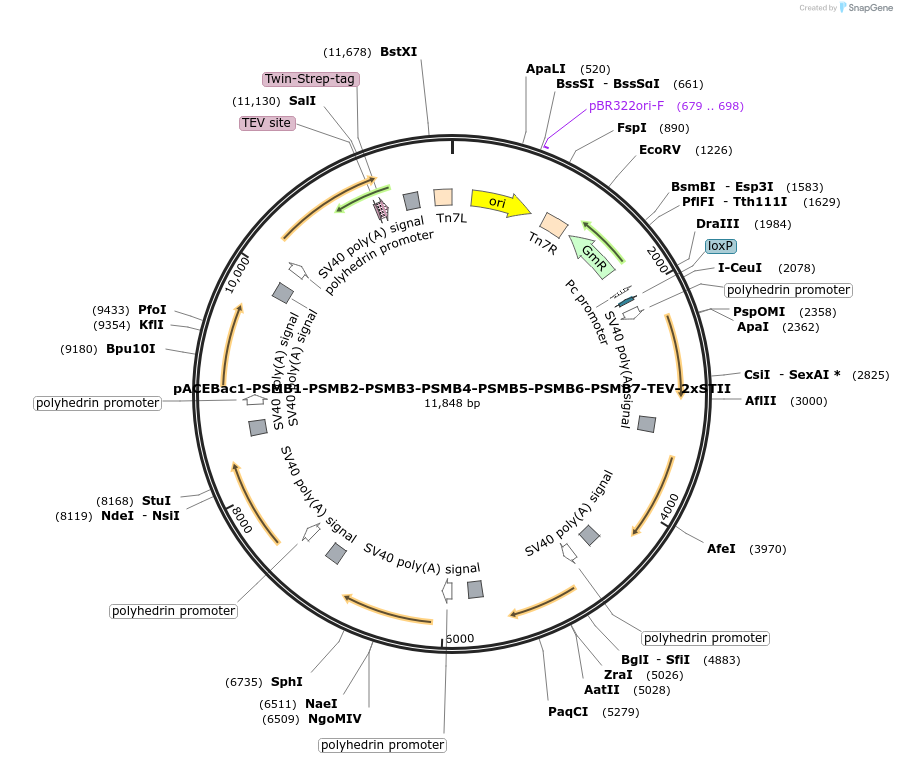

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 214139 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepACEBac1
- Total vector size (bp) 11848
-
Vector typeInsect Expression
Growth in Bacteria
-
Bacterial Resistance(s)Gentamicin, 10 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert 1
-
Gene/Insert namePSMB1
-
SpeciesH. sapiens (human)
-
Entrez GenePSMB1 (a.k.a. HC5, NEDMHAL, PMSB1, PSC5)
- Promoter polyhedrin
Cloning Information for Gene/Insert 1
- Cloning method Unknown
- 5′ sequencing primer n/a (Common Sequencing Primers)
Gene/Insert 2
-
Gene/Insert namePSMB2
-
SpeciesH. sapiens (human)
-
Entrez GenePSMB2 (a.k.a. HC7-I)
- Promoter polyhedrin
Cloning Information for Gene/Insert 2
- Cloning method Unknown
- 5′ sequencing primer n/a (Common Sequencing Primers)
Gene/Insert 3
-
Gene/Insert namePSMB3
-
SpeciesH. sapiens (human)
-
Entrez GenePSMB3 (a.k.a. HC10-II)
- Promoter polyhedrin
Cloning Information for Gene/Insert 3
- Cloning method Unknown
- 5′ sequencing primer n/a (Common Sequencing Primers)
Gene/Insert 4
-
Gene/Insert namePSMB4
-
SpeciesH. sapiens (human)
-
Entrez GenePSMB4 (a.k.a. HN3, HsN3, PRAAS3, PROS-26, PROS26)
- Promoter polyhedrin
Cloning Information for Gene/Insert 4
- Cloning method Unknown
- 5′ sequencing primer n/a (Common Sequencing Primers)
Gene/Insert 5
-
Gene/Insert namePSMB5
-
SpeciesH. sapiens (human)
-
Entrez GenePSMB5 (a.k.a. LMPX, MB1)
- Promoter polyhedrin
Cloning Information for Gene/Insert 5
- Cloning method Unknown
- 5′ sequencing primer n/a (Common Sequencing Primers)
Gene/Insert 6
-
Gene/Insert namePSMB6
-
SpeciesH. sapiens (human)
-
Entrez GenePSMB6 (a.k.a. DELTA, LMPY)
- Promoter polyhedrin
Cloning Information for Gene/Insert 6
- Cloning method Unknown
- 5′ sequencing primer n/a (Common Sequencing Primers)
Gene/Insert 7
-
Gene/Insert namePSMB7
-
SpeciesH. sapiens (human)
-
Entrez GenePSMB7
- Promoter polyhedrin
-
Tag
/ Fusion Protein
- 2xSTII (C terminal on insert)
Cloning Information for Gene/Insert 7
- Cloning method Unknown
- 5′ sequencing primer n/a (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please note there is a deletion in Gentamycin that causes slightly reduced growth efficiency on (+Amp/Kan/Gen/Tet) compared to cells with a fully WT Gen resistance gene.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pACEBac1-PSMB1-PSMB2-PSMB3-PSMB4-PSMB5-PSMB6-PSMB7-TEV-2xSTII was a gift from Brenda Schulman (Addgene plasmid # 214139 ; http://n2t.net/addgene:214139 ; RRID:Addgene_214139) -
For your References section:
Visualizing chaperone-mediated multistep assembly of the human 20S proteasome. Adolf F, Du J, Goodall EA, Walsh RM Jr, Rawson S, von Gronau S, Harper JW, Hanna J, Schulman BA. Nat Struct Mol Biol. 2024 Apr 10. doi: 10.1038/s41594-024-01268-9. 10.1038/s41594-024-01268-9 PubMed 38600324
