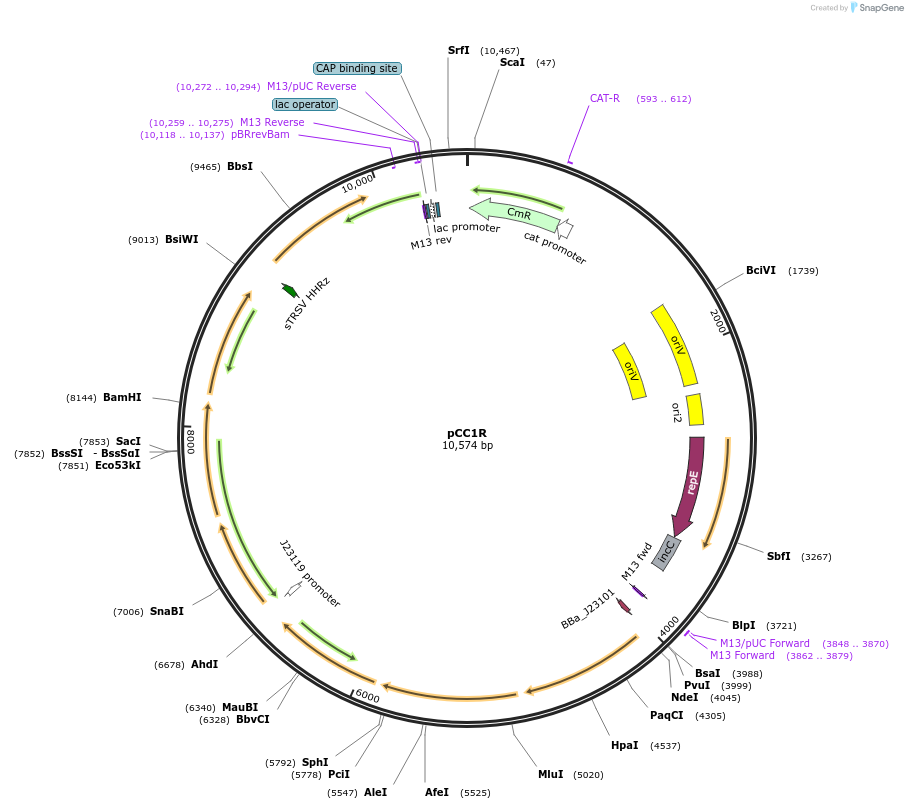

pCC1R
(Plasmid #213497)

• Purpose: Encodes the receptor array and inducible aiiA gene of the three-node Turing circuit
• Depositing Lab: Mark Isalan
• Publication: A three-node Turing gene circuit forms periodic spatial patterns in bacteria (unpublished)

Backbone

• Vector backbone: pCC1
• Vector type: Synthetic Biology

Growth in Bacteria

• Bacterial Resistance(s): Chloramphenicol, 25 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Growth instructions: 10 ug/ml chloramphenicol
• Copy number: Low Copy

Gene/Insert 1

• Gene/Insert name: pcaU
• Insert Size (bp): 840

Gene/Insert 2

• Gene/Insert name: nahR
• Insert Size (bp): 906

Gene/Insert 3

• Gene/Insert name: rpaR
• Insert Size (bp): 732
• Entrez Gene: rpaR (a.k.a. I8G32_RS01665, I8G32_00334)

Gene/Insert 4

• Gene/Insert name: phlF
• Insert Size (bp): 606

Gene/Insert 5

• Gene/Insert name: cinR
• Insert Size (bp): 759

Gene/Insert 6

• Gene/Insert name: vanR
• Insert Size (bp): 735

Gene/Insert 7

• Gene/Insert name: aiiA
• Insert Size (bp): 756

Resource Information

• Supplemental Documents:
  • pcc1-rpar.gb

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
