pAAV-hSyn-LMO11 (GeNL_SS-ChRmine)
(Plasmid
#213034)
-
Purposefusion protein of mNeonGreen, SSLuc, and ChRmine for bioluminescent optogenetics
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 213034 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepAAV
- Backbone size w/o insert (bp) 4580
- Total vector size (bp) 6857
-
Vector typeAAV
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberLow Copy
Gene/Insert 1
-
Gene/Insert namemNeonGreen
-
Insert Size (bp)676
-
Tag
/ Fusion Protein
- Gaussia luciferase signal sequence (N terminal on insert)
Gene/Insert 2
-
Gene/Insert nameISN-IE
-
SpeciesOplophorus
-
Insert Size (bp)498
Gene/Insert 3
-
Gene/Insert nameChRmine
-
Insert Size (bp)991
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAAV-hSyn-LMO11 (GeNL_SS-ChRmine) was a gift from Ute Hochgeschwender (Addgene plasmid # 213034 ; http://n2t.net/addgene:213034 ; RRID:Addgene_213034)

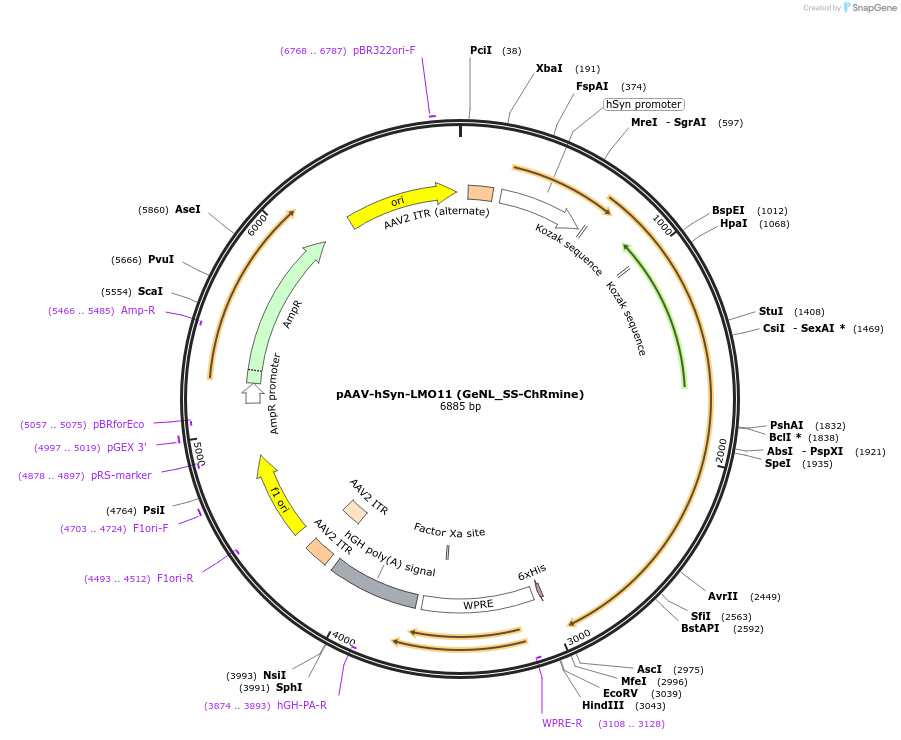

Map uploaded by the depositor.
