plentiguide.U6.DR136(CasRX)_stuffer.puro
(Plasmid
#212972)
-
PurposeLentiviral plasmid used for the cloning of inmature gRNAs of the Albarossa Library. The plasmid also encoded a puromycin resistance cassette.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 212972 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

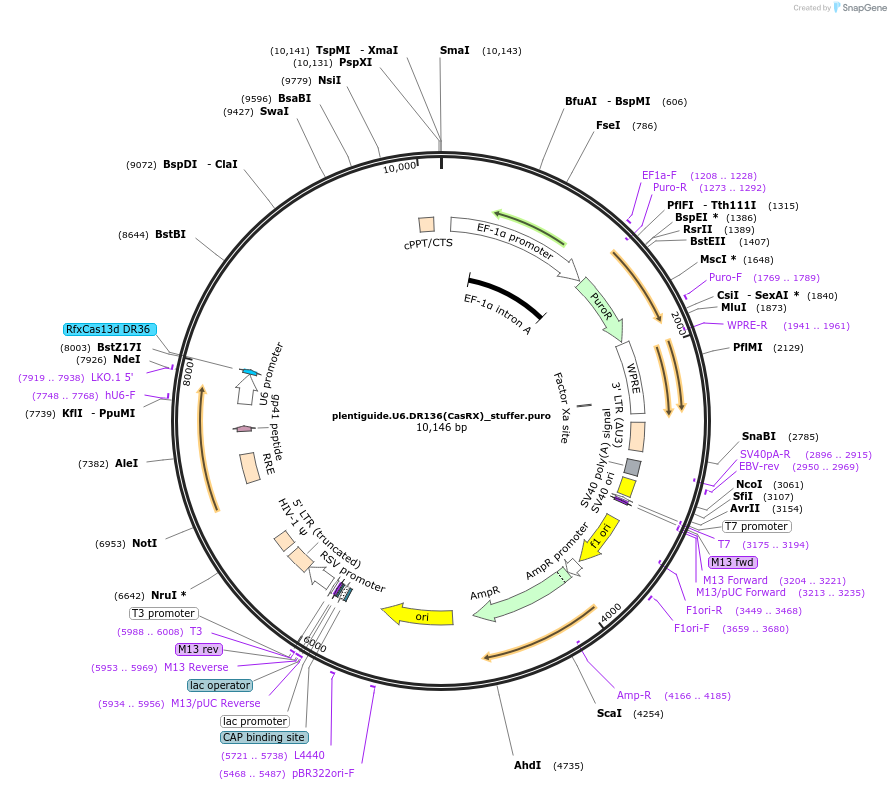

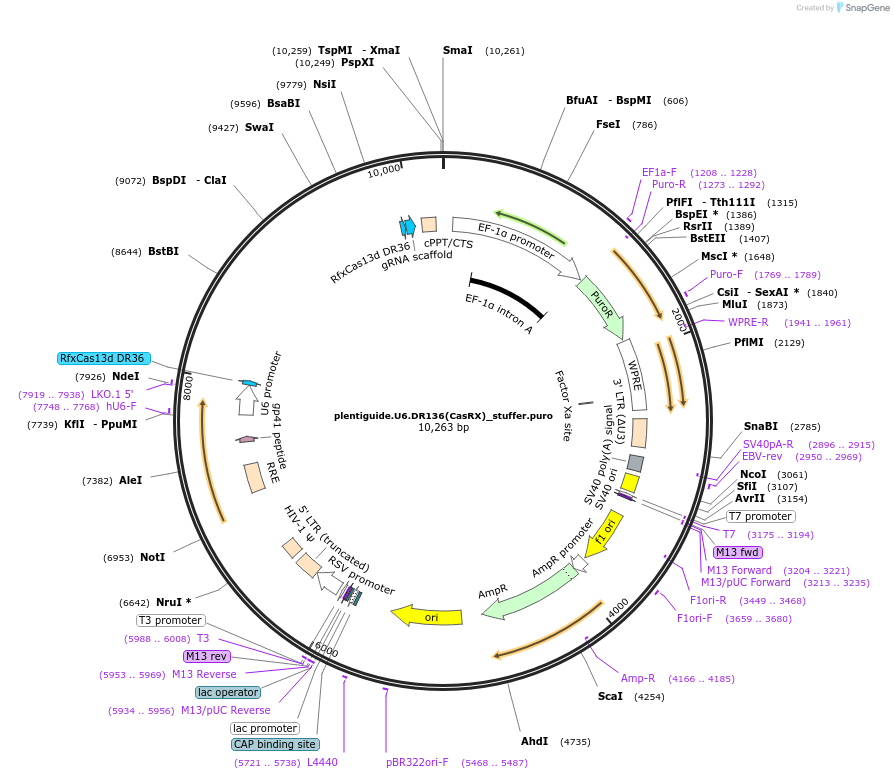

Backbone
-
Vector backbonepLentiGuide
- Total vector size (bp) 10146
-
Vector typeMammalian Expression, Lentiviral, CRISPR
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature30°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameDR1 CasRx backbone
-
gRNA/shRNA sequenceGTTGTAAATGAGCACACAAAATACACATGCTAAAATATTATATTCTATGACCTTTATAAAATCAACCAAAATCTTCTTTTTAATAACTTTAGTATCAATAATTAGAATTTTTATGTTCCTTTTTGCAAACTTTTAATAAAAATGAGCAAAATAAAAAAACGCTAGTTTTAGTAACTCGCGTTGTTTTCTTCACCTTTAATAATAGCTACTCCACCACTTGTTCCTAAGCGGTCAGCTCCTGCTTCAATCATTTTTTGAGCATCTTCAAATGTTCTAACTCCACCAGCTGCTTTAACTAAAGCATTGTCTTTAACAACTGACTTCATTAGTTTAACATCTTCAAATGTTGCACCTGATTTTGAAAATCCTGTTGATGTTTTAACAAATTCTAATCCAGCTTCAACAGCTATTTCACAAGCTTTCATGATTTCTTCTTTTGTTAATAAACAATTTTCCATAATACATTTAACAACATGTGATCCAGCTGCTTTTTTTACAGCTTTCATGTCTTCTAAAACTAATTCATAATTTTTGTCTTTTAATGCACCAATATTTAATACCATATCAATTTCTGTTGCACCATCTTTAATTGCTTCAGAAACTTCGAATGCTTTTGTAGCTGTTGTGCATGCACCTAGAGGAAAACCTACAACATTTGTTATTCCTACATTTGTGCCTTTTAATAATTCTTTACAATAGCTTGTTCAATATGAATTAACACAAACTGTTGCAAAATCAAATTCAATTGCTTCATCACATAATTGTTTAATTTCAGCTTTCGTAGCATCTTGTTTTAATAATGTGTGATCTATATATTTGTTTAGTTTCATTTTTTCTCCTATATATTCATTTTTAATTTTAATTCTTTAATAATTTCGTCTACTTTAACTTTAGCGTTTTGAACAGATTCACCAACACCTATAAAATAAATTTTTAGTTTAGGTTCAGTTCCACTTGGGCGAACAGCAAATCATGACTTATCTTCTAAATAAAATTTTAGTAAGTCTTGTCCTGGCATATTATACATTCCATCGATGTAGTCTTCAACATTAACAACTTTAAGTCCAGCAATTTGAGTTAAGGGTGTTGCTCTCAATGATTTCATTAATGGTTCAATTTTTAATTTCTTTTCTTCTGGTTTAAAATTCAAGTTTAAAGTGAAAGTGTAATATGCACCCATTTCTTTAAATAAATCTTCTAAATAGTCTACTAATGTTTTATTTTGTTTTTTATAAAATCAAGCAGCCTCTGCTATTAATATAGAAGCTTGTATTCCATCTTTATCTCTAGCTGAGTCATCAATTACATATCCATAACTTTCTTCATAAGCAAAAACAAAATTTAATCCGTTATCTTCTTCTTTAGCAATTTCTCTACCCATTCATTTAAATCCAGTTAAAGTTTTTACAATATTAACTCCATATTTTTCATGAGCGATTCTATCACCCAAATCACTTGTTACAAAACTTGAATATAGAGCCGGATTTTTTGGAATGCTATTTAAGCGTTTTAGATTTGATAATTTTCAATCAATTAAAATTGGTCCTGTTTGATTTCCATCTAATCTTACAAAATGACCATCATGTTTTATTGCCATTCCAAATCTGTCAGCATCTGGGTCATTCATAATAATAATATCTGCATCATGTTTAATACCATATTCAAGCGGTATTTTTCATGCAGGATCAAATTCTGGATTTGGATTTACAACATTTTTAAATGTTTCATCTTCAAATGCATGCTCTTCAACCTCAATAACGTTATATCCTGATTCACGTAATATTTTTGGGGTAAATTTAGTTCCTGTTCCATTAACTGCGCTAAAAATAATTTTTAAATCTTTTTTAGCTTCTTGCTCTTTTTTGTA
- Promoter U6
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BsmBI (unknown if destroyed)
- 3′ cloning site BsmBI (unknown if destroyed)
- 5′ sequencing primer N/A
- 3′ sequencing primer N/A (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
plentiguide.U6.DR136(CasRX)_stuffer.puro was a gift from Roland Rad (Addgene plasmid # 212972) -
For your References section:
Genome-scale pan-cancer interrogation of lncRNA dependencies using CasRx. Montero JJ, Trozzo R, Sugden M, Ollinger R, Belka A, Zhigalova E, Waetzig P, Engleitner T, Schmidt-Supprian M, Saur D, Rad R. Nat Methods. 2024 Feb 26. doi: 10.1038/s41592-024-02190-0. 10.1038/s41592-024-02190-0 PubMed 38409225
