Addgene

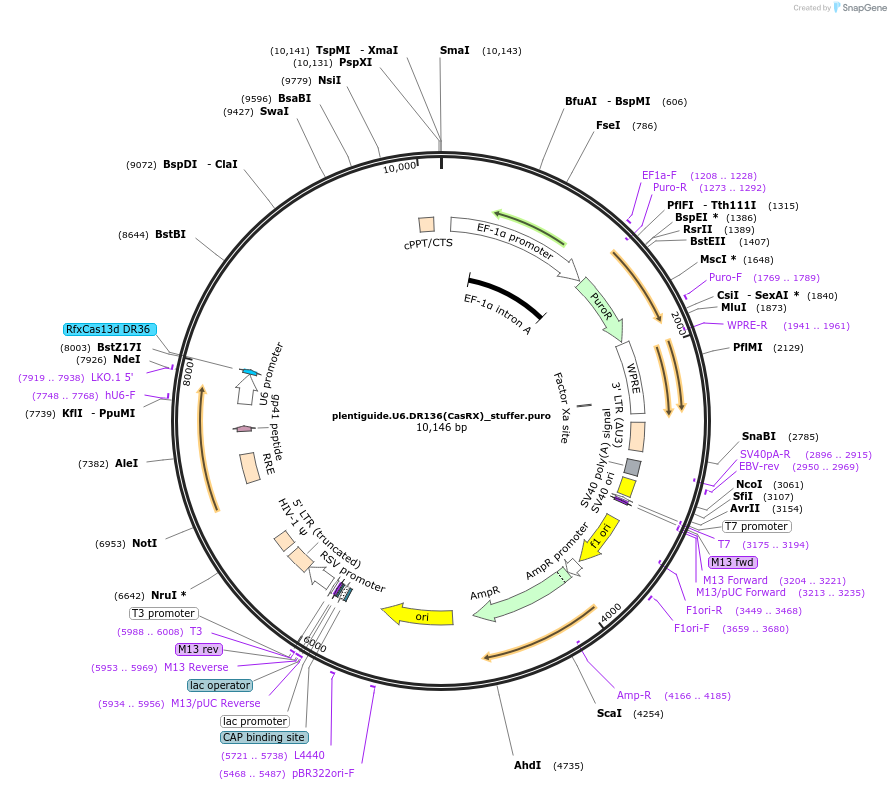

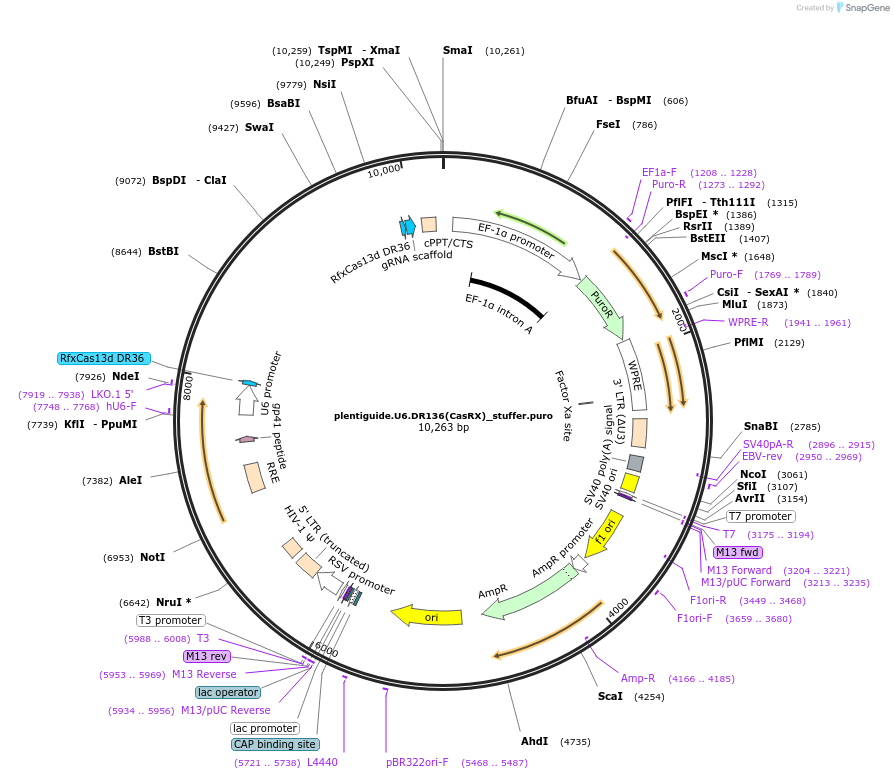

plentiguide.U6.DR136(CasRX)_stuffer.puro
(Plasmid #212972)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 212972 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pLentiGuide
  • Total vector size (bp) 10146
  • Vector type
    Mammalian Expression, Lentiviral, CRISPR
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    DR1 CasRx backbone
  • gRNA/shRNA sequence
    GTTGTAAATGAGCACACAAAATACACATGCTAAAATATTATATTCTATGACCTTTATAAAATCAACCAAAATCTTCTTTTTAATAACTTTAGTATCAATAATTAGAATTTTTATGTTCCTTTTTGCAAACTTTTAATAAAAATGAGCAAAATAAAAAAACGCTAGTTTTAGTAACTCGCGTTGTTTTCTTCACCTTTAATAATAGCTACTCCACCACTTGTTCCTAAGCGGTCAGCTCCTGCTTCAATCATTTTTTGAGCATCTTCAAATGTTCTAACTCCACCAGCTGCTTTAACTAAAGCATTGTCTTTAACAACTGACTTCATTAGTTTAACATCTTCAAATGTTGCACCTGATTTTGAAAATCCTGTTGATGTTTTAACAAATTCTAATCCAGCTTCAACAGCTATTTCACAAGCTTTCATGATTTCTTCTTTTGTTAATAAACAATTTTCCATAATACATTTAACAACATGTGATCCAGCTGCTTTTTTTACAGCTTTCATGTCTTCTAAAACTAATTCATAATTTTTGTCTTTTAATGCACCAATATTTAATACCATATCAATTTCTGTTGCACCATCTTTAATTGCTTCAGAAACTTCGAATGCTTTTGTAGCTGTTGTGCATGCACCTAGAGGAAAACCTACAACATTTGTTATTCCTACATTTGTGCCTTTTAATAATTCTTTACAATAGCTTGTTCAATATGAATTAACACAAACTGTTGCAAAATCAAATTCAATTGCTTCATCACATAATTGTTTAATTTCAGCTTTCGTAGCATCTTGTTTTAATAATGTGTGATCTATATATTTGTTTAGTTTCATTTTTTCTCCTATATATTCATTTTTAATTTTAATTCTTTAATAATTTCGTCTACTTTAACTTTAGCGTTTTGAACAGATTCACCAACACCTATAAAATAAATTTTTAGTTTAGGTTCAGTTCCACTTGGGCGAACAGCAAATCATGACTTATCTTCTAAATAAAATTTTAGTAAGTCTTGTCCTGGCATATTATACATTCCATCGATGTAGTCTTCAACATTAACAACTTTAAGTCCAGCAATTTGAGTTAAGGGTGTTGCTCTCAATGATTTCATTAATGGTTCAATTTTTAATTTCTTTTCTTCTGGTTTAAAATTCAAGTTTAAAGTGAAAGTGTAATATGCACCCATTTCTTTAAATAAATCTTCTAAATAGTCTACTAATGTTTTATTTTGTTTTTTATAAAATCAAGCAGCCTCTGCTATTAATATAGAAGCTTGTATTCCATCTTTATCTCTAGCTGAGTCATCAATTACATATCCATAACTTTCTTCATAAGCAAAAACAAAATTTAATCCGTTATCTTCTTCTTTAGCAATTTCTCTACCCATTCATTTAAATCCAGTTAAAGTTTTTACAATATTAACTCCATATTTTTCATGAGCGATTCTATCACCCAAATCACTTGTTACAAAACTTGAATATAGAGCCGGATTTTTTGGAATGCTATTTAAGCGTTTTAGATTTGATAATTTTCAATCAATTAAAATTGGTCCTGTTTGATTTCCATCTAATCTTACAAAATGACCATCATGTTTTATTGCCATTCCAAATCTGTCAGCATCTGGGTCATTCATAATAATAATATCTGCATCATGTTTAATACCATATTCAAGCGGTATTTTTCATGCAGGATCAAATTCTGGATTTGGATTTACAACATTTTTAAATGTTTCATCTTCAAATGCATGCTCTTCAACCTCAATAACGTTATATCCTGATTCACGTAATATTTTTGGGGTAAATTTAGTTCCTGTTCCATTAACTGCGCTAAAAATAATTTTTAAATCTTTTTTAGCTTCTTGCTCTTTTTTGTA
  • Promoter U6

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BsmBI (unknown if destroyed)
  • 3′ cloning site BsmBI (unknown if destroyed)
  • 5′ sequencing primer N/A
  • 3′ sequencing primer N/A
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    plentiguide.U6.DR136(CasRX)_stuffer.puro was a gift from Roland Rad (Addgene plasmid # 212972)

  • For your References section:

    Genome-scale pan-cancer interrogation of lncRNA dependencies using CasRx. Montero JJ, Trozzo R, Sugden M, Ollinger R, Belka A, Zhigalova E, Waetzig P, Engleitner T, Schmidt-Supprian M, Saur D, Rad R. Nat Methods. 2024 Feb 26. doi: 10.1038/s41592-024-02190-0. 10.1038/s41592-024-02190-0 PubMed 38409225
