pYSD313
(Plasmid
#212931)
-

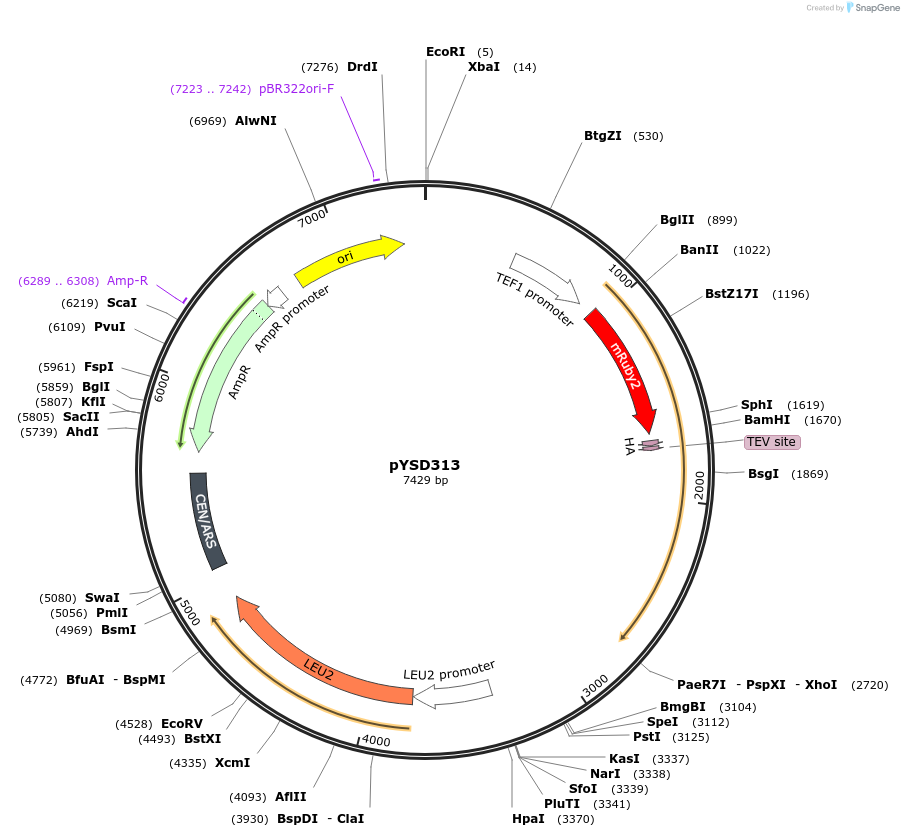

PurposeEncodes the Aga2 signal peptide, mRuby2 fluorescent protein HA-tagged Sed1p yeast surface display anchor protein with pTEF1 promoter, tTDH1 terminator, LEU2 selectable marker and CEN/ARS yeast origin.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 212931 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepYSD099
-
Vector typeYeast Expression
-
Selectable markersLEU2
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameSed1
-
SpeciesS. cerevisiae (budding yeast)
-
Entrez GeneSED1
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BsaI (destroyed during cloning)
- 3′ cloning site BsaI (destroyed during cloning)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pYSD313 was a gift from Paul Young (Addgene plasmid # 212931 ; http://n2t.net/addgene:212931 ; RRID:Addgene_212931) -
For your References section:
A Yeast Modular Cloning (MoClo) Toolkit Expansion for Optimization of Heterologous Protein Secretion and Surface Display in Saccharomyces cerevisiae. O'Riordan NM, Juric V, O'Neill SK, Roche AP, Young PW. ACS Synth Biol. 2024 Mar 14. doi: 10.1021/acssynbio.3c00743. 10.1021/acssynbio.3c00743 PubMed 38483353
