pYSD082
(Plasmid
#212919)
-
PurposeEncodes the HA-tagged S. cerevisiae Cwp2p yeast surface display anchor protein as a Type 4a part to be used in the yeast secretion/display (YSD) extension of the MoClo yeast toolkit (YTK)
-
Depositing Lab
-

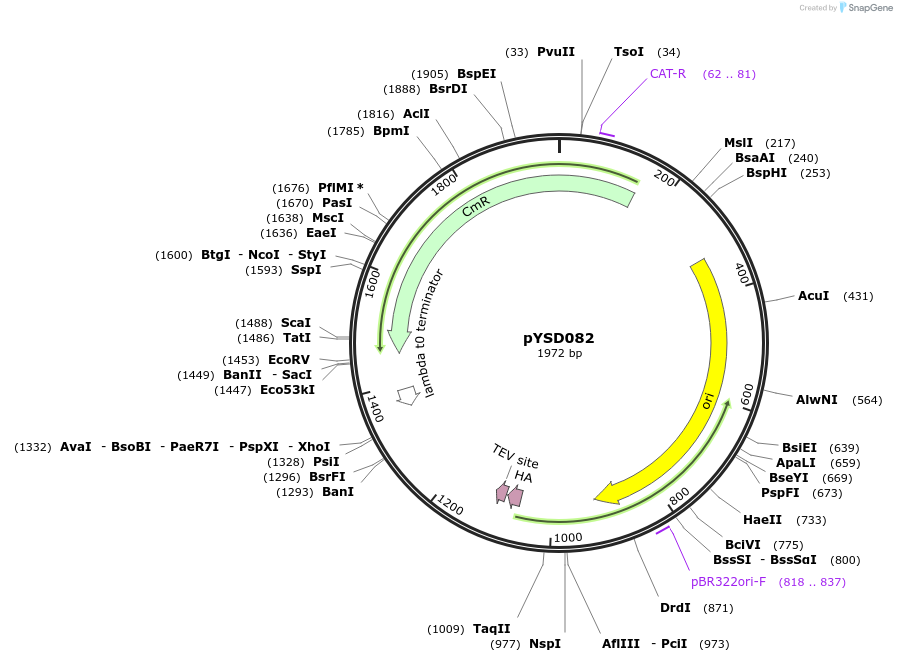

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 212919 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepYTK001
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameCWP2
-
SpeciesS. cerevisiae (budding yeast)
-
Entrez GeneCWP2 (a.k.a. LPR1, YKL097W-A)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BsmBI (destroyed during cloning)
- 3′ cloning site BsmBI (destroyed during cloning)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pYSD082 was a gift from Paul Young (Addgene plasmid # 212919 ; http://n2t.net/addgene:212919 ; RRID:Addgene_212919) -
For your References section:
A Yeast Modular Cloning (MoClo) Toolkit Expansion for Optimization of Heterologous Protein Secretion and Surface Display in Saccharomyces cerevisiae. O'Riordan NM, Juric V, O'Neill SK, Roche AP, Young PW. ACS Synth Biol. 2024 Mar 14. doi: 10.1021/acssynbio.3c00743. 10.1021/acssynbio.3c00743 PubMed 38483353
