pAAVS1-TetOn-ZIM3-KRAB-dCas9-P2A-mCherry
(Plasmid #212829)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 212829 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

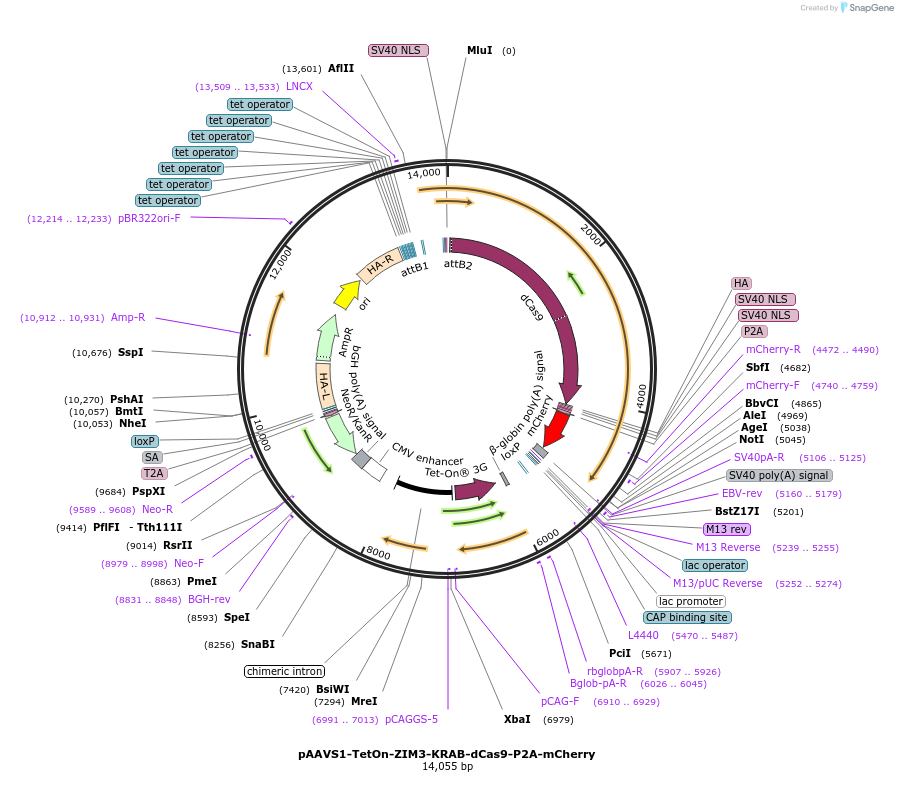

Backbone

  • Vector backbone
    pAAVS1-TetOn-ZIM3-KRAB-dCas9-P2A-mCherry
  • Total vector size (bp) 14055
  • Vector type
    Mammalian Expression, Bacterial Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    ZIM3-KRAB-dCas9-P2A-mCherry
  • Alt name
    dCas9
  • Species
    Synthetic
  • Insert Size (bp)
    10694
  • Promoter CAG, TetOn
  • Tags / Fusion Proteins
    • HA-tag (C terminal on insert)
    • ZIM3-KRAB (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AscI (destroyed during cloning)
  • 3′ cloning site AscI (destroyed during cloning)
  • 5′ sequencing primer ATGGCCGATCCCATGGTGGCGGTAC
  • 3′ sequencing primer ACTGTGGGGTGGAGATATCAGCTTTACTAGGG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAVS1-TetOn-ZIM3-KRAB-dCas9-P2A-mCherry was a gift from Wolfgang Enard (Addgene plasmid # 212829 ; http://n2t.net/addgene:212829 ; RRID:Addgene_212829)

  • For your References section:

    Generation and characterization of inducible KRAB-dCas9 iPSCs from primates for cross-species CRISPRi. Edenhofer F. C., Térmeg A., Ohnuki M., Jocher J., Kliesmete Z., Briem E., Hellmann I., Enard W.. iScience, 21 June 2024 10.1016/j.isci.2024.110090
