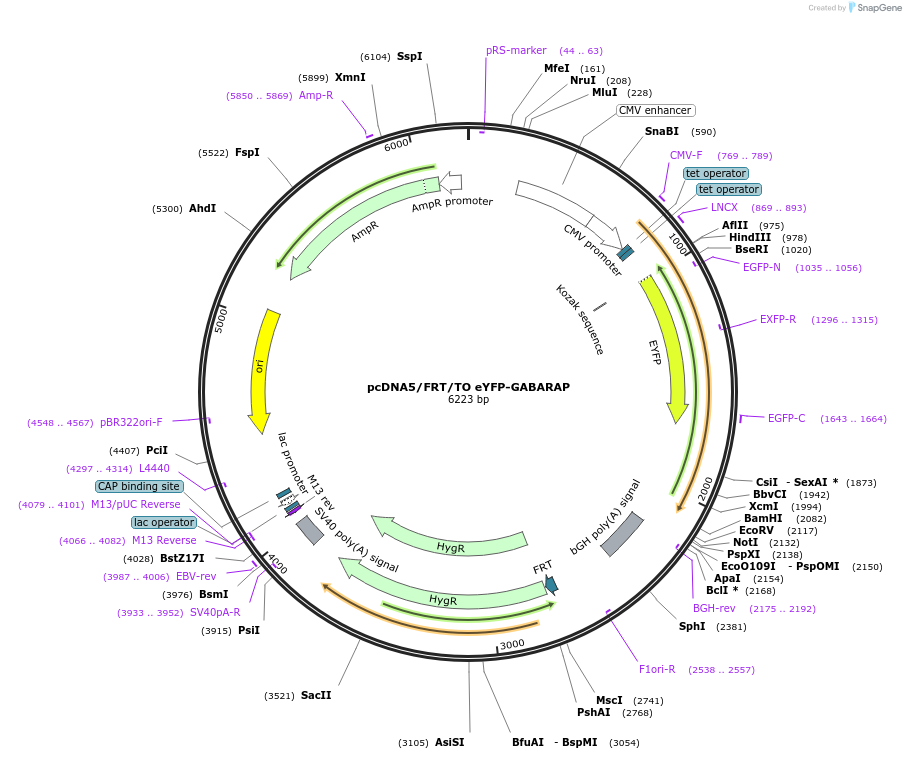

pcDNA5/FRT/TO eYFP-GABARAP
(Plasmid #212111)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 212111 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA5/FRT/TO
  • Backbone manufacturer
    Thermo Fisher
  • Backbone size w/o insert (bp) 5125
  • Total vector size (bp) 6223
  • Vector type
    Mammalian Expression
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    eYFP-GABARAP
  • Species
    H. sapiens (human); Aequorea victoria
  • Insert Size (bp)
    1098
  • Entrez Gene
    GABARAP (a.k.a. ATG8A, GABARAP-a, MM46)
  • Promoter CMV
  • Tag / Fusion Protein
    • eYFP (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer CMV-fw
  • 3′ sequencing primer BGH-rev
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA5/FRT/TO eYFP-GABARAP was a gift from Dieter Willbold (Addgene plasmid # 212111 ; http://n2t.net/addgene:212111 ; RRID:Addgene_212111)

  • For your References section:

    Highlighting the hidden: monitoring the avidity-driven association of a fluorescent GABARAP tandem with microtubules in living cells. Üffing A, Gold L, Gensch T, Weiergräber OH, Hoffmann S, Willbold D. Autophagy Reports, 3(1). doi: 10.1080/27694127.2024.2348899 10.1080/27694127.2024.2348899
