pcDNA5/FRT/TO GABARAP(G116A)-mTagBFP2-GABARAP(G116A)
(Plasmid #212108)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 212108 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

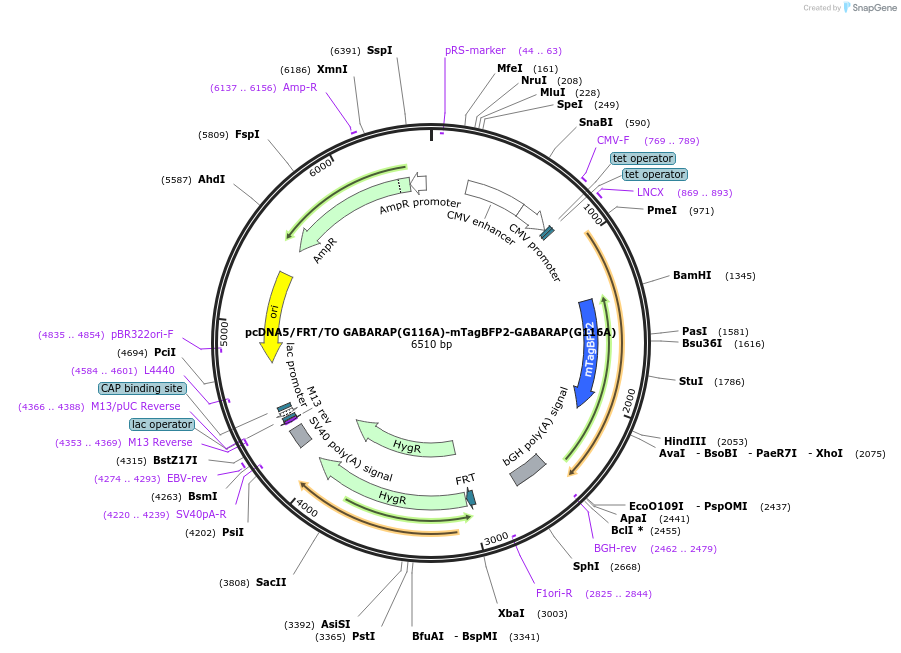

Backbone

  • Vector backbone
    pcDNA5/FRT/TO
  • Backbone size w/o insert (bp) 5049
  • Total vector size (bp) 6510
  • Modifications to backbone
    Part of MCS removed (TTAAGCTTGGTACCGAGCTCGGATCCACTAGTCCAGTGTGGTGGAATTCTGCAGATATCCAGCACAGTGGCGGCCGCTCGAGTCTAGA), --> PmeI site followed by PspOMI site (TTTAAACGGGCCC), second PmeI site removed (gt --> ac) downstream of ApaI site
  • Vector type
    Mammalian Expression
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    GABARAP(G116A)-mTagBFP2-GABARAP(G116A)
  • Species
    H. sapiens (human); Entacmaea quadricolor
  • Insert Size (bp)
    1461
  • Mutation
    G116A (lipidation deficiency) of both GABARAPs
  • Entrez Gene
    GABARAP (a.k.a. ATG8A, GABARAP-a, MM46)
  • Promoter CMV
  • Tag / Fusion Protein
    • mTagBFP2

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site PmeI (not destroyed)
  • 3′ cloning site ApaI (not destroyed)
  • 5′ sequencing primer CMV-fw
  • 3′ sequencing primer bGH-rev* (GACACCTACTCAGACAATGCG)
    • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA5/FRT/TO GABARAP(G116A)-mTagBFP2-GABARAP(G116A) was a gift from Dieter Willbold (Addgene plasmid # 212108 ; http://n2t.net/addgene:212108 ; RRID:Addgene_212108)

  • For your References section:

    Highlighting the hidden: monitoring the avidity-driven association of a fluorescent GABARAP tandem with microtubules in living cells. Üffing A, Gold L, Gensch T, Weiergräber OH, Hoffmann S, Willbold D. Autophagy Reports, 3(1). doi: 10.1080/27694127.2024.2348899 10.1080/27694127.2024.2348899
