LLP791_PB_dCas9-SSSavi_BirA
(Plasmid
#211786)
-

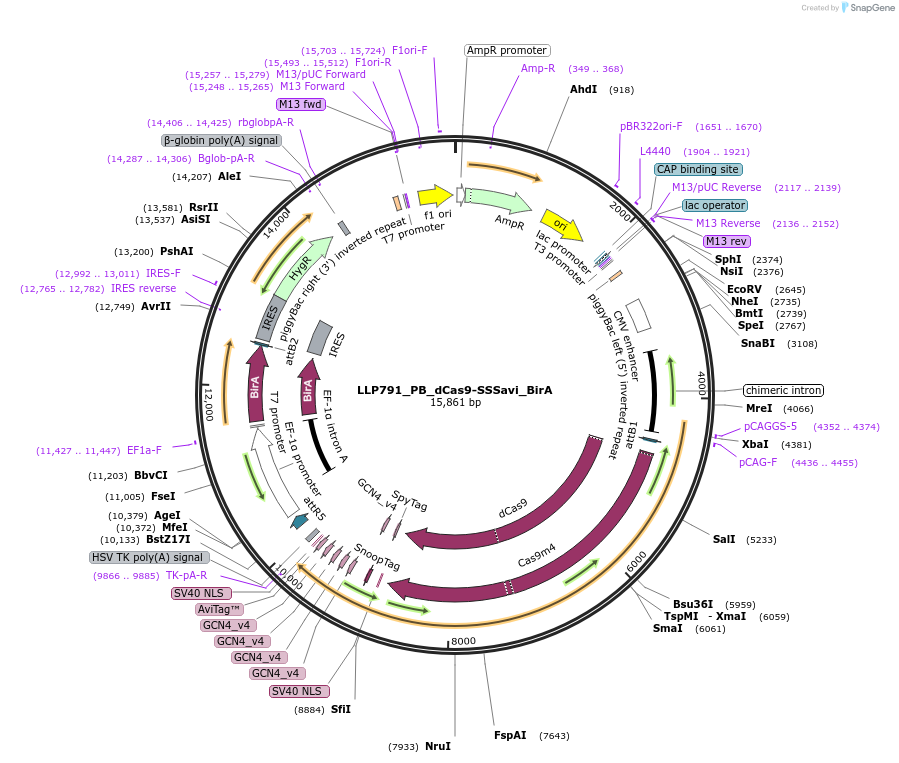

PurposePiggyBac plasmid with dCas9 docking array with four tag domains (Spy, Snoop, aGCN4, Avi), and BirA, with Hygro selection
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 211786 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonePB_CAH
-
Vector typeMammalian Expression
-
Selectable markersHygromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namedCas9, Spy, Snoop, aGCN4, AviTags
-
SpeciesH. sapiens (human)
-
MutationdCas9 D10A and H840A
- Promoter pCAGG abd pEF1a
-
Tag
/ Fusion Protein
- 3xHA (N terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site Unknown (unknown if destroyed)
- 3′ cloning site Unknown (unknown if destroyed)
- 5′ sequencing primer n/a (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://www.biorxiv.org/content/10.1101/2022.07.01.498378v1 for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
LLP791_PB_dCas9-SSSavi_BirA was a gift from Ryan Lister (Addgene plasmid # 211786 ; http://n2t.net/addgene:211786 ; RRID:Addgene_211786) -
For your References section:
A modular dCas9-based recruitment platform for combinatorial epigenome editing. Swain T, Pflueger C, Freytag S, Poppe D, Pflueger J, Nguyen TV, Li JK, Lister R. Nucleic Acids Res. 2023 Nov 24:gkad1108. doi: 10.1093/nar/gkad1108. 10.1093/nar/gkad1108 PubMed 38000387
