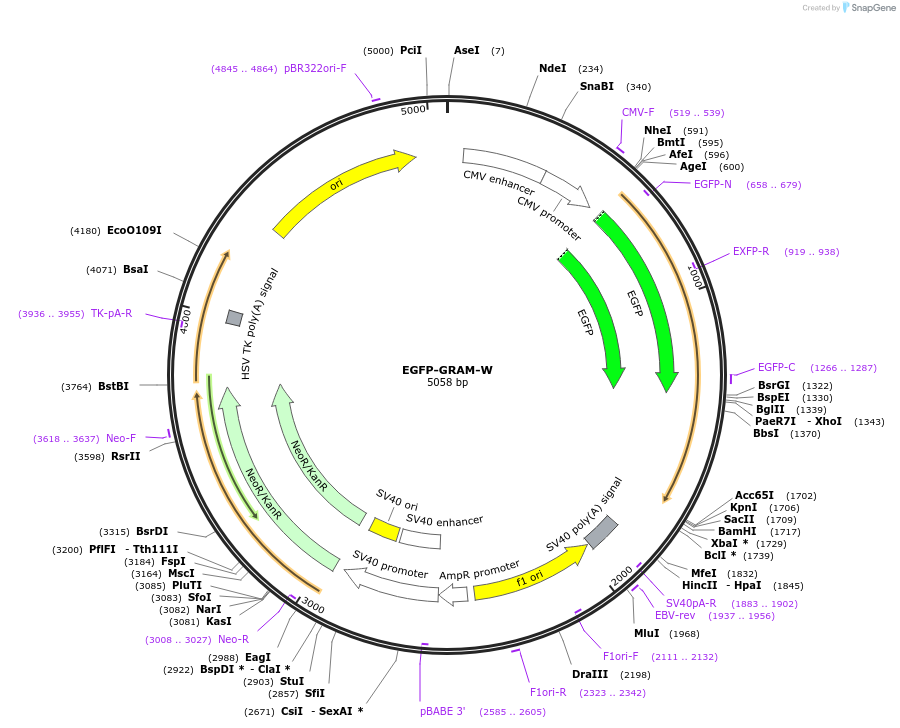

EGFP-GRAM-W
(Plasmid #211701)

• Purpose: Expression of EGFP-tagged GRAM domain of GRAMD1b carrying a G187W mutation (EGFP-GRAM1b G187W) in mammalian cells
• Depositing Lab: Yasunori Saheki
• Publication: Koh et al Nat Commun. 2023 Oct 25;14(1):6773. doi: 10.1038/s41467-023-42498-7.

Backbone

• Vector backbone: pEGFP-C1
• Backbone manufacturer: Clontech
• Backbone size w/o insert (bp): 4731
• Total vector size (bp): 5058
• Vector type: Mammalian Expression
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: GRAM domain of GRAMD1b/Aster-B
• Alt name: GRAM1b
• Species: H. sapiens (human)
• Insert Size (bp): 353
• Mutation: Changed Glycine 187 to Tryptophan
• GenBank ID: NM_020716.4
• Entrez Gene: GRAMD1B (a.k.a. LINC01059)
• Promoter: CMV
• Tag / Fusion Protein:
  • EGFP (N terminal on insert)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: XhoI (not destroyed)
• 3′ cloning site: KpnI (not destroyed)
• 5′ sequencing primer: EGFP-C
• 3′ sequencing primer: SV40pA-R

Resource Information

• Supplemental Documents:
  • D60 EGFP-GRAM-W.gbk

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
