Addgene

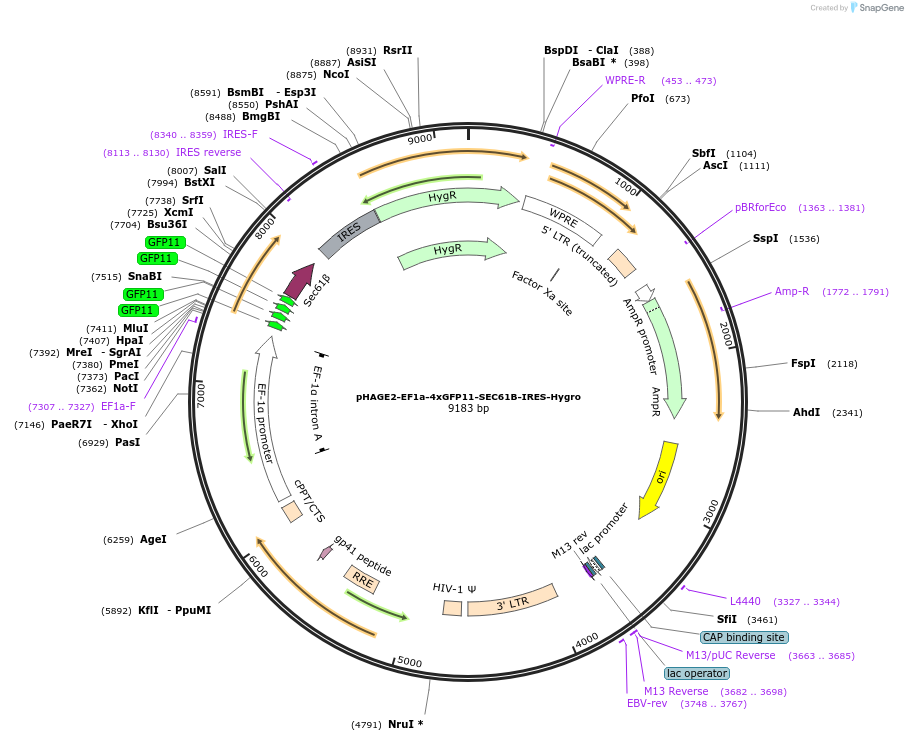

pHAGE2-EF1a-4xGFP11-SEC61B-IRES-Hygro
(Plasmid #211468)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 211468 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pHAGE2
  • Backbone size w/o insert (bp) 8587
  • Total vector size (bp) 9183
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    4xGFP11-SEC61B
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    596
  • Promoter EF-1a

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site MluI (not destroyed)
  • 3′ cloning site SalI (not destroyed)
  • 5′ sequencing primer CGTCCAGGCACCTCGATTAG
  • 3′ sequencing primer TCGTCAAGAAGACAGGGCCA
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pHAGE2-EF1a-4xGFP11-SEC61B-IRES-Hygro was a gift from Agnel Sfeir (Addgene plasmid # 211468 ; http://n2t.net/addgene:211468 ; RRID:Addgene_211468)

  • For your References section:

    Mitochondrial DNA breaks activate an integrated stress response to reestablish homeostasis. Fu Y, Sacco O, DeBitetto E, Kanshin E, Ueberheide B, Sfeir A. Mol Cell. 2023 Oct 8:S1097-2765(23)00753-0. doi: 10.1016/j.molcel.2023.09.026. 10.1016/j.molcel.2023.09.026 PubMed 37832546
