pBiT3.1-N_WDR89:1-387
(Plasmid #211261)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 211261 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

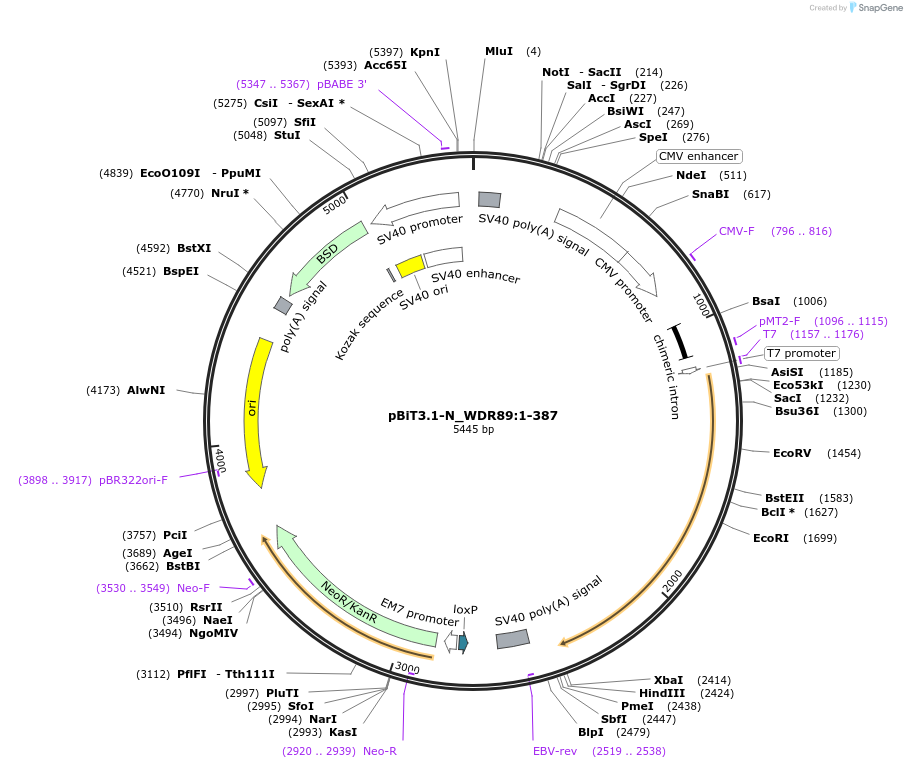

Backbone

  • Vector backbone
    pBiT3.1-N
  • Backbone manufacturer
    Promega
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    WDR89:M1-Q387
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1161
  • Mutation
    wild type
  • Entrez Gene
    WDR89 (a.k.a. MGC9907, MSTP050, C14orf150)
  • Promoter CMV
  • Tag / Fusion Protein
    • MVSGWRLFKKISGSSGGSSG (N terminal on insert)

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer T7
  • 3′ sequencing primer TTGCTCAGCGGTGGCAGCAG
    • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Mammalian Gene Collection (BC010698.1)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

5' Cloning Site: Xho1 (not destroyed), 3' Cloning Site: Xba1 (not destroyed).

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBiT3.1-N_WDR89:1-387 was a gift from Cheryl Arrowsmith (Addgene plasmid # 211261 ; http://n2t.net/addgene:211261 ; RRID:Addgene_211261)

  • For your References section:

    A resource to enable chemical biology and drug discovery of WDR Proteins. Ackloo S, Li F, Szewczyk M, Seitova A, Loppnau P, Zeng H, Xu J, Ahmad S, Arnautova Y, Baghaie A, Beldar S, Bolotokova A, Centrella P, Chau I, Clark M, Cuozzo J, Dehghani-Tafti S, Disch J, Dong A, Dumas A, Feng J, Ghiabi P, Gibson E, Gilmer J, Goldman B, Green S, Guié M, Guilinger J, Harms N, Herasymenko O, Houliston S, Hutchinson A, Kearnes S, Keefe A, Kimani S, Kramer T, Kutera M, Kwak H, Lento C, Li Y, Liu J, Loup J, Machado R, Mulhern C, Perveen S, Righetto G, Riley P, Shrestha S, Sigel E, Silva M, Sintchak M, Slakman B, Taylor R, Thompson J, Torng W, Underkoffler C, Rechenberg M, Watson I, Wilson D, Wolf E, Yadav M, Yazdi A, Zhang J, Zhang Y, Santhakumar V, Edwards A, Barsyte-Lovejoy D, Schapira M, Brown P, Halabelian L, Arrowsmith C. bioRxiv 2024.03.03.583197 10.1101/2024.03.03.583197
