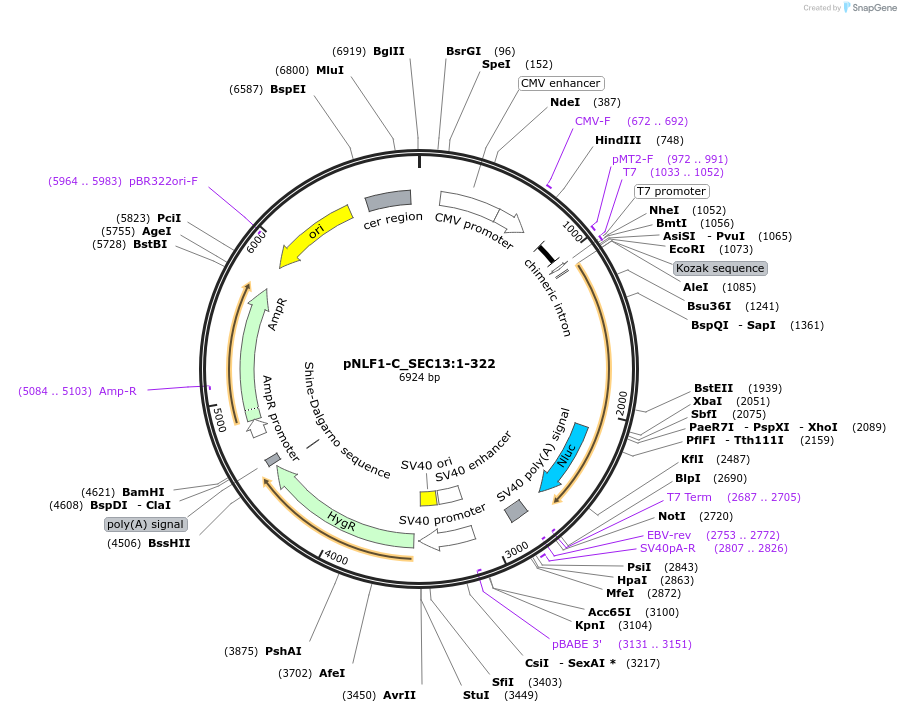

pNLF1-C_SEC13:1-322
(Plasmid #211087)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 211087 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pNLF1-C
  • Backbone manufacturer
    Promega
  • Vector type
    Mammalian Expression
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    SEC13:M1-Q322
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    966
  • Mutation
    wild type
  • Entrez Gene
    SEC13 (a.k.a. D3S1231E, SEC13L1, SEC13R, npp-20)
  • Promoter CMV
  • Tag / Fusion Protein
    • NanoLuc luciferase (C terminal on insert)

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer ttacagctcttaaggctagag
  • 3′ sequencing primer agccggctgtctgtcgccag
    • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Mammalian Gene Collection (BC002634)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

5' Cloning Site: EcoR1 (not destroyed), 3' Cloning Site: Xba1 (not destroyed). C terminal tag: srfgpnscrralgssgvftledfvgdwrqtagynldqvleqggvsslfqnlgvsvtpiqrivlsgenglkidihviipyeglsgdqmgqiekifkvvypvddhhfkvilhygtlvidgvtpnmidyfgrpyegiavfdgkkitvtgtlwngnkiiderlinpdgsllfrvtingvtgwrlcerila.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pNLF1-C_SEC13:1-322 was a gift from Cheryl Arrowsmith (Addgene plasmid # 211087 ; http://n2t.net/addgene:211087 ; RRID:Addgene_211087)

  • For your References section:

    A resource to enable chemical biology and drug discovery of WDR Proteins. Ackloo S, Li F, Szewczyk M, Seitova A, Loppnau P, Zeng H, Xu J, Ahmad S, Arnautova Y, Baghaie A, Beldar S, Bolotokova A, Centrella P, Chau I, Clark M, Cuozzo J, Dehghani-Tafti S, Disch J, Dong A, Dumas A, Feng J, Ghiabi P, Gibson E, Gilmer J, Goldman B, Green S, Guié M, Guilinger J, Harms N, Herasymenko O, Houliston S, Hutchinson A, Kearnes S, Keefe A, Kimani S, Kramer T, Kutera M, Kwak H, Lento C, Li Y, Liu J, Loup J, Machado R, Mulhern C, Perveen S, Righetto G, Riley P, Shrestha S, Sigel E, Silva M, Sintchak M, Slakman B, Taylor R, Thompson J, Torng W, Underkoffler C, Rechenberg M, Watson I, Wilson D, Wolf E, Yadav M, Yazdi A, Zhang J, Zhang Y, Santhakumar V, Edwards A, Barsyte-Lovejoy D, Schapira M, Brown P, Halabelian L, Arrowsmith C. bioRxiv 2024.03.03.583197 10.1101/2024.03.03.583197
