hARL15
(Plasmid #209798)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 209798 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

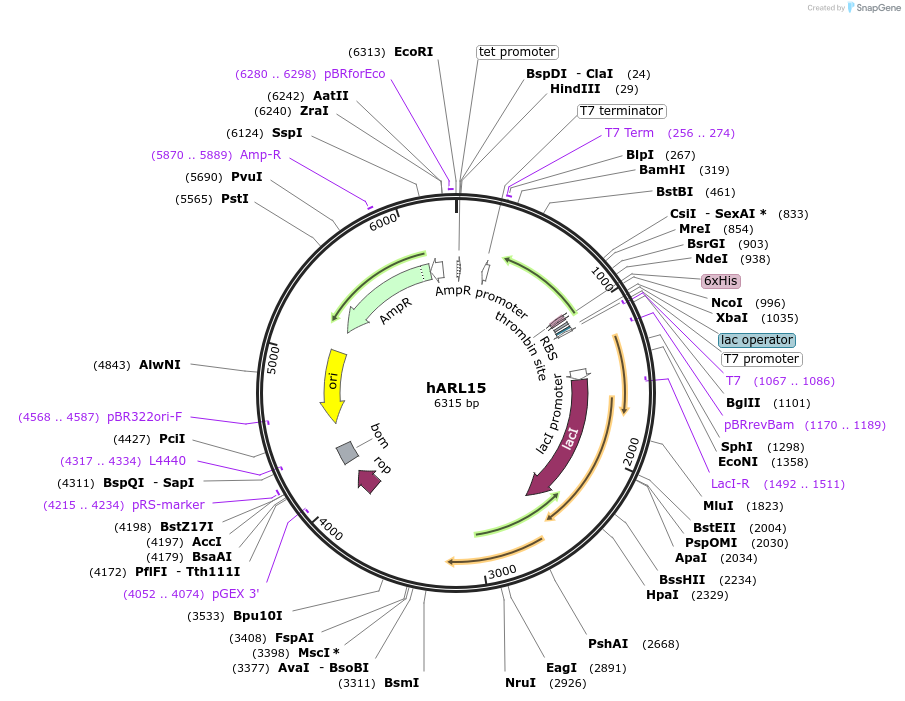

Backbone

  • Vector backbone
    pET15b
  • Backbone manufacturer
    Novagen
  • Backbone size w/o insert (bp) 5708
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    ARL15
  • Species
    H. sapiens (human)
  • Entrez Gene
    ARL15 (a.k.a. ARFRP2)
  • Promoter T7
  • Tag / Fusion Protein
    • 6xHis (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer T7 Fwd
  • 3′ sequencing primer T7 Rev
    • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    codon-optimized gene synthesis

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    hARL15 was a gift from Kalle Gehring (Addgene plasmid # 209798 ; http://n2t.net/addgene:209798 ; RRID:Addgene_209798)

  • For your References section:

    Structural insights into regulation of CNNM-TRPM7 divalent cation uptake by the small GTPase ARL15. Mahbub L, Kozlov G, Zong P, Lee EL, Tetteh S, Nethramangalath T, Knorn C, Jiang J, Shahsavan A, Yue L, Runnels L, Gehring K. Elife. 2023 Jul 14;12:e86129. doi: 10.7554/eLife.86129. 10.7554/eLife.86129 PubMed 37449820
