pHDR-USR-SpCas9
(Plasmid
#208829)
-
Purpose(Empty Backbone) HDR Universal Surrogate Reporter with a sgRNA and consistently expressed SpCas9. The PuroR reporter gene was designed to be repaired as a selecting marker gene only by the sgRNA/Cas9-triggered HDR.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 208829 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepXL
-
Vector typeMammalian Expression
- Promoter CMV
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pHDR-USR-SpCas9 was a gift from Zhiying Zhang (Addgene plasmid # 208829 ; http://n2t.net/addgene:208829 ; RRID:Addgene_208829) -
For your References section:
A Universal Surrogate Reporter for Efficient Enrichment of CRISPR/Cas9-Mediated Homology-Directed Repair in Mammalian Cells. Yan N, Sun Y, Fang Y, Deng J, Mu L, Xu K, Mymryk JS, Zhang Z. Mol Ther Nucleic Acids. 2020 Mar 6;19:775-789. doi: 10.1016/j.omtn.2019.12.021. Epub 2019 Dec 24. 10.1016/j.omtn.2019.12.021 PubMed 31955009

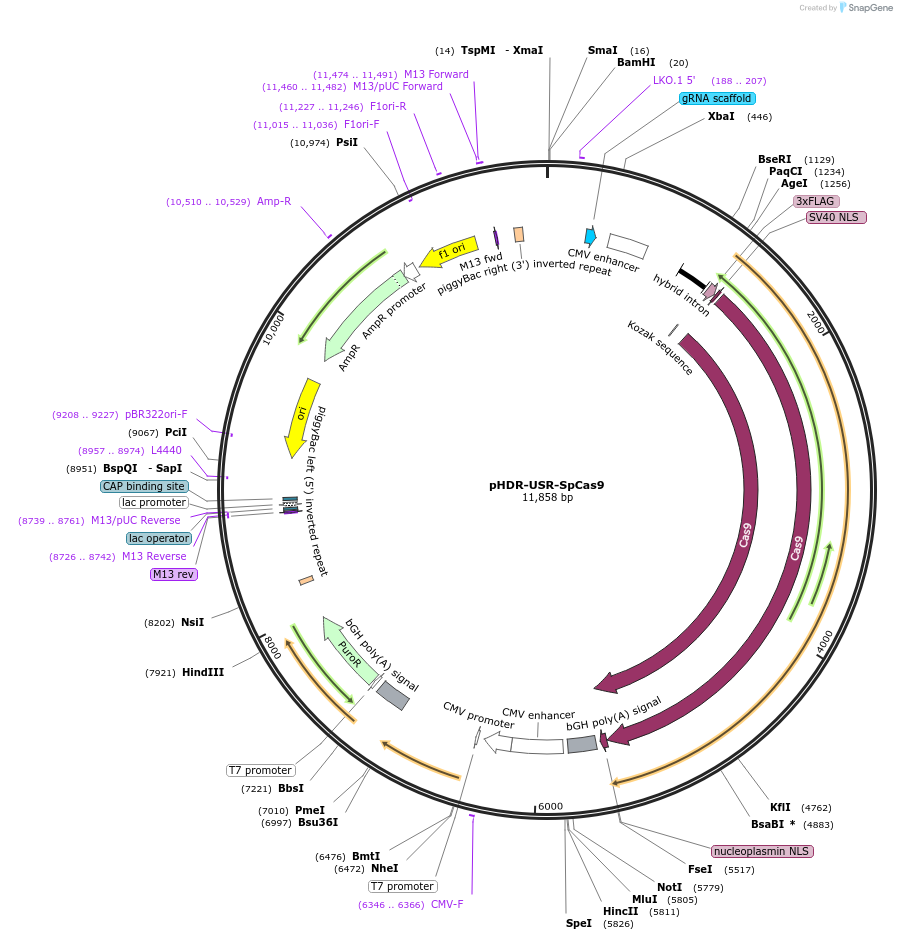

Map uploaded by the depositor.
