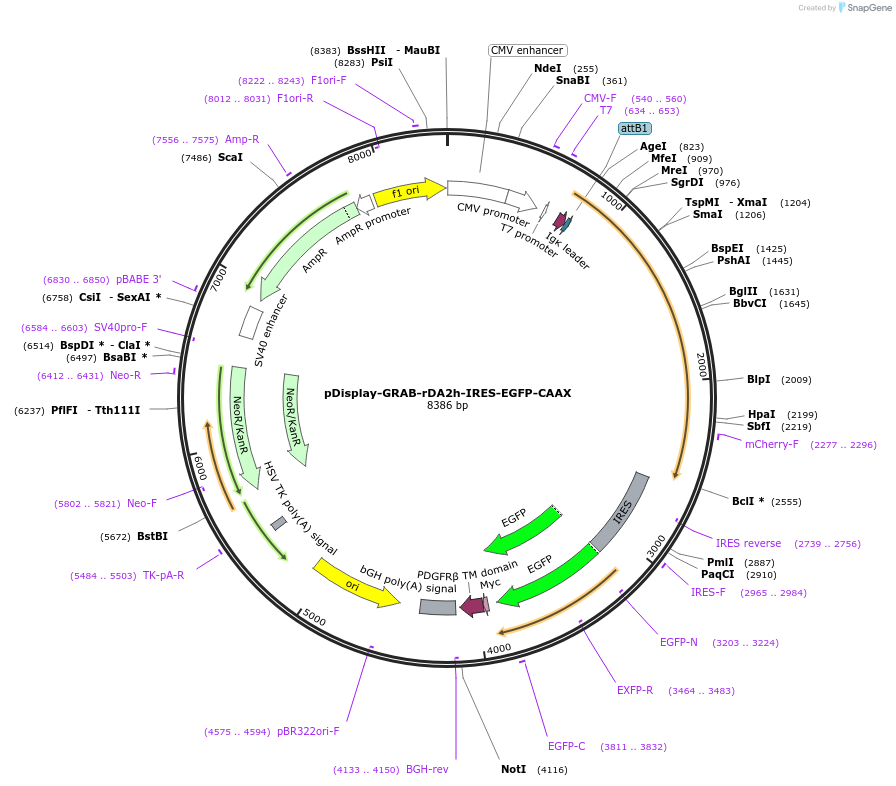

pDisplay-GRAB-rDA2h-IRES-EGFP-CAAX
(Plasmid #208695)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 208695 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pDisplay
  • Backbone manufacturer
    Invitrogen
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    GPCR activation based dopamine (DA) sensor GRAB_rDA2h
  • Alt name
    GRAB_rDA2h
  • Alt name
    rDA2h
  • Species
    Solenopsis invicta
  • Promoter CMV

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer ATGGGCGGTAGGCGTGTA
  • 3′ sequencing primer CCTCACATTGCCAAAAGACG
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://doi.org/10.1101/2023.08.24.554559 for biorxiv preprint

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pDisplay-GRAB-rDA2h-IRES-EGFP-CAAX was a gift from Yulong Li (Addgene plasmid # 208695 ; http://n2t.net/addgene:208695 ; RRID:Addgene_208695)

  • For your References section:

    Improved green and red GRAB sensors for monitoring dopaminergic activity in vivo. Zhuo Y, Luo B, Yi X, Dong H, Miao X, Wan J, Williams JT, Campbell MG, Cai R, Qian T, Li F, Weber SJ, Wang L, Li B, Wei Y, Li G, Wang H, Zheng Y, Zhao Y, Wolf ME, Zhu Y, Watabe-Uchida M, Li Y. Nat Methods. 2023 Nov 30. doi: 10.1038/s41592-023-02100-w. 10.1038/s41592-023-02100-w PubMed 38036855
