pUC-ODN-hsRPL3-CterTwStrep-ΔPAM62&56
(Plasmid
#208645)
-
PurposeRemove PAM region in HomoArms by introduce SNP rs7495557 and rs760194863, to prevent cleavage after success edit. Digest with nt.BspQI and nb.BsrDI to get ssDNA.
-
Depositing Lab
-

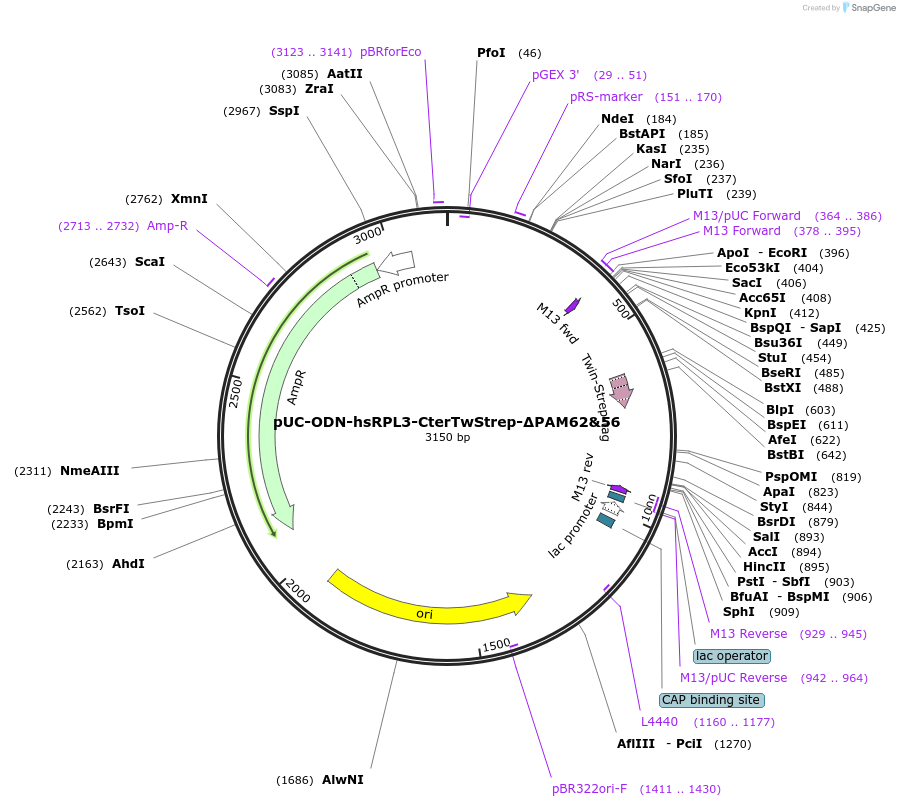

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 208645 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepUC-ODN
-
Modifications to backbonerefer to (Addgene#208642)
-
Vector typeCRISPR ; ssDNA donnor preparation for knock-in of RPL3 C-ter tag
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameTwin Strep tag with RPL3 genome HomoArm
-
Alt nameDonnor DNA for CRISPR tagging of RPL3
-
SpeciesH. sapiens (human), Synthetic
-
MutationTwo SNP (rs749555789, rs760194863) were introduced to abolish the PAM of sgRNA in (Addgene#208647 and #208979)
-
GenBank ID5'HomoArm: NC_000022.11:39313122~39312943 3'HomoArm: NC_000022.11:39312939~39312773
-
Entrez GeneRPL3 (a.k.a. ASC-1, L3, TARBP-B, uL3)
-
Tag
/ Fusion Protein
- Twin Strep
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer M13-F
- 3′ sequencing primer M13-R (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pUC-ODN-hsRPL3-CterTwStrep-ΔPAM62&56 was a gift from Quanfu Ma (Addgene plasmid # 208645 ; http://n2t.net/addgene:208645 ; RRID:Addgene_208645)
