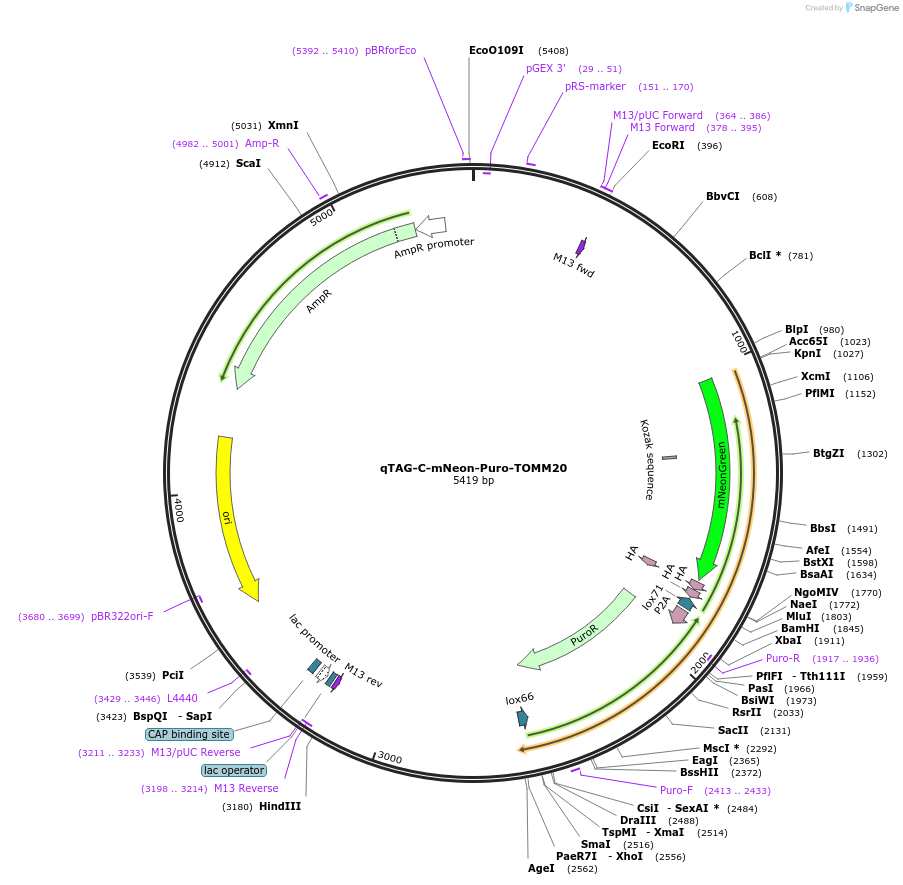

qTAG-C-mNeon-Puro-TOMM20
(Plasmid #207790)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 207790 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pUC19
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 2686
  • Vector type
    Mammalian Expression, CRISPR ; Donor Template
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    TOMM20 Homology Arms flanking a mNeon-Puro Cassette
  • Alt name
    TOMM20
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2778
  • Entrez Gene
    TOMM20 (a.k.a. MAS20, MOM19, TOM20)

Cloning Information

  • Cloning method Unknown
  • 5′ sequencing primer CTGCAAGGCGATTAAGTTGGGTAAC
  • 3′ sequencing primer GGCTCGTATGTTGTGTGGAATTGT
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

To be co-transfected with sgRNA plasmid px330-PITCh-TOMM20 (Addgene #207789): https://www.addgene.org/207789 . Please visit https://www.biorxiv.org/content/10.1101/2023.11.01.565029v3 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    qTAG-C-mNeon-Puro-TOMM20 was a gift from Laurence Pelletier (Addgene plasmid # 207790 ; http://n2t.net/addgene:207790 ; RRID:Addgene_207790)

  • For your References section:

    qTAG: an adaptable plasmid scaffold for CRISPR-based endogenous tagging. Philip R, Sharma A, Matellan L, Erpf AC, Hsu WH, Tkach JM, Wyatt HDM, Pelletier L. EMBO J. 2024 Dec 12. doi: 10.1038/s44318-024-00337-5. 10.1038/s44318-024-00337-5 PubMed 39668248
