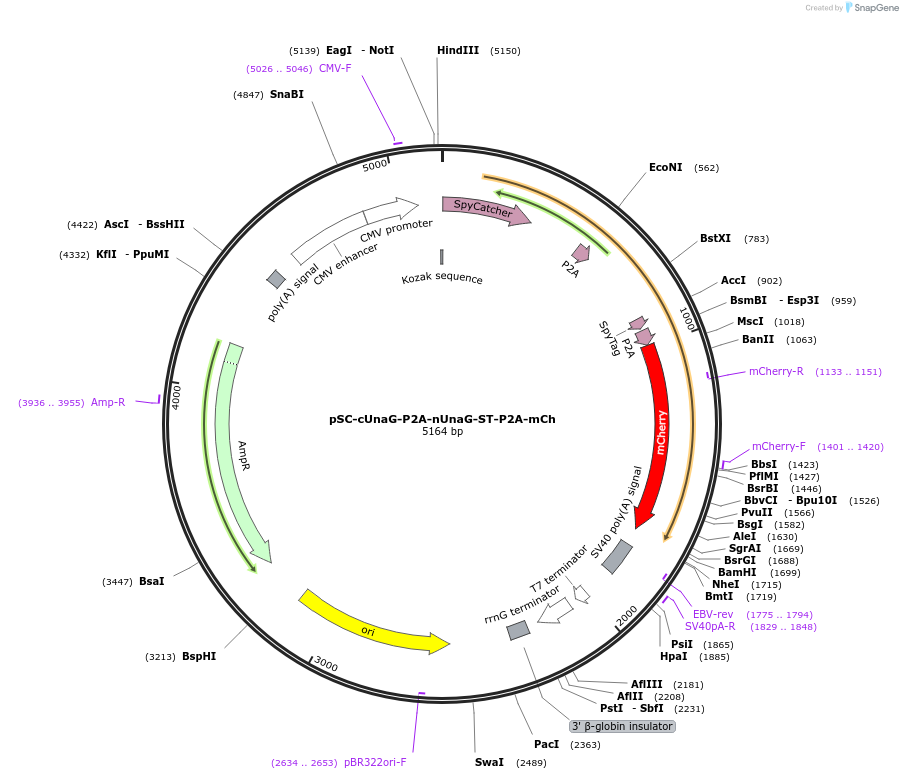

pSC-cUnaG-P2A-nUnaG-ST-P2A-mCh
(Plasmid #207634)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 207634 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pCMV
  • Backbone size w/o insert (bp) 5454
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    photocaged SpyCatcher-cUnaG-P2A-nUnaG-SpyTag-P2A-mCh
  • Species
    Synthetic
  • Insert Size (bp)
    1698
  • Mutation
    Amber stop codon at SC's critical lysine
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Nhel (unknown if destroyed)
  • 3′ cloning site Xbal (unknown if destroyed)
  • 5′ sequencing primer T7F
  • 3′ sequencing primer T7R
    • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSC-cUnaG-P2A-nUnaG-ST-P2A-mCh was a gift from Cole DeForest (Addgene plasmid # 207634 ; http://n2t.net/addgene:207634 ; RRID:Addgene_207634)

  • For your References section:

    Spatiotemporal functional assembly of split protein pairs through a light-activated SpyLigation. Ruskowitz ER, Munoz-Robles BG, Strange AC, Butcher CH, Kurniawan S, Filteau JR, DeForest CA. Nat Chem. 2023 May;15(5):694-704. doi: 10.1038/s41557-023-01152-x. Epub 2023 Apr 17. 10.1038/s41557-023-01152-x PubMed 37069270
