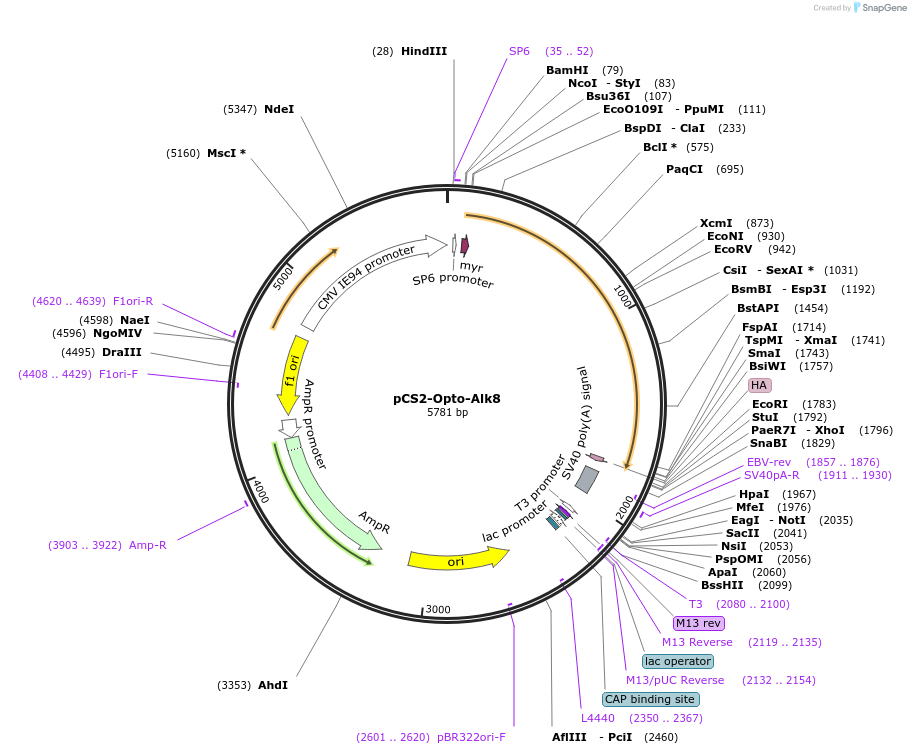

pCS2-Opto-Alk8
(Plasmid #207615)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 207615 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pCS2+
  • Backbone size w/o insert (bp) 4095
  • Total vector size (bp) 5784

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Alk8 (acvr1l) kinase domain + VfLOV domain
  • Species
    D. rerio (zebrafish); Vaucheria frigida
  • Insert Size (bp)
    1698
  • Entrez Gene
    acvr1l (a.k.a. acvr1, alk2, alk8, alk8sum, etID124543.2, fk50h05, laf, lost-a-fin, mfn, wu:fk50h05)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCS2-Opto-Alk8 was a gift from Patrick Müller (Addgene plasmid # 207615 ; http://n2t.net/addgene:207615 ; RRID:Addgene_207615)

  • For your References section:

    Optogenetic investigation of BMP target gene expression diversity. Rogers KW, ElGamacy M, Jordan BM, Muller P. Elife. 2020 Nov 11;9:e58641. doi: 10.7554/eLife.58641. 10.7554/eLife.58641 PubMed 33174840
