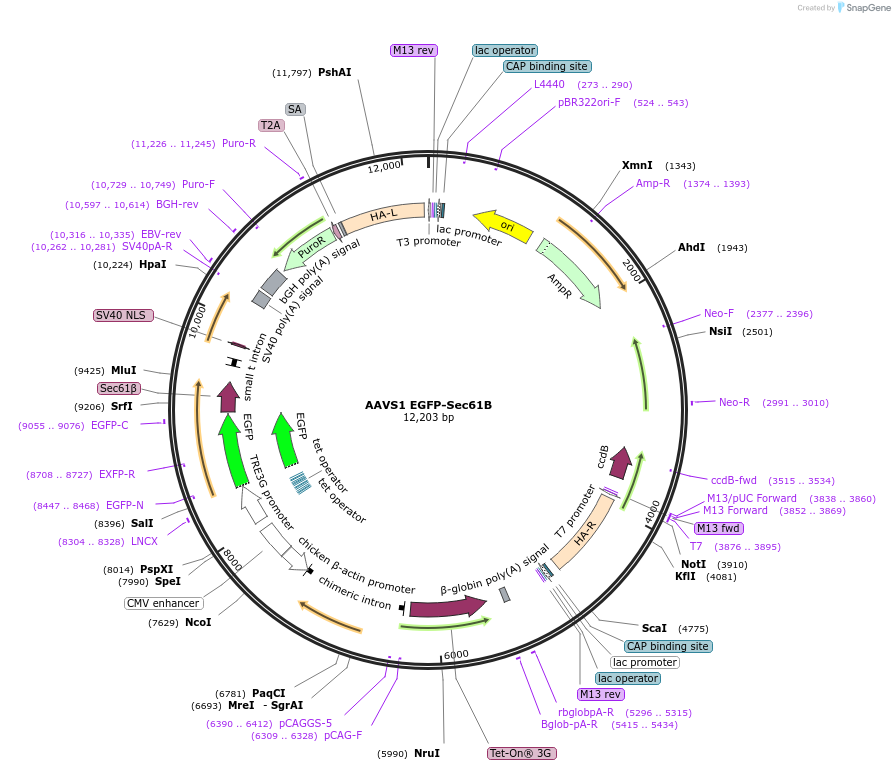

AAVS1 EGFP-Sec61B
(Plasmid #207553)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 207553 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    AAVS1-TRE3G-EGFP (Plasmid #52343)
  • Total vector size (bp) 12000
  • Vector type
    Mammalian Expression
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    TET inducible EGFP-Sec61B
  • Species
    H. sapiens (human), Synthetic
  • Promoter Endogenous
  • Tag / Fusion Protein
    • EGFP (N terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer TRE3G-gatcgcctggagcaattccac
  • 3′ sequencing primer SV40pA-R
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    AAVS1 EGFP-Sec61B was a gift from Jens Schmidt (Addgene plasmid # 207553 ; http://n2t.net/addgene:207553 ; RRID:Addgene_207553)

  • For your References section:

    Quantitative analysis of autophagy reveals the role of ATG9 and ATG2 in autophagosome formation. Broadbent DG, Barnaba C, Perez GI, Schmidt JC. J Cell Biol. 2023 Jul 3;222(7):e202210078. doi: 10.1083/jcb.202210078. Epub 2023 Apr 28. 10.1083/jcb.202210078 PubMed 37115157
