Addgene

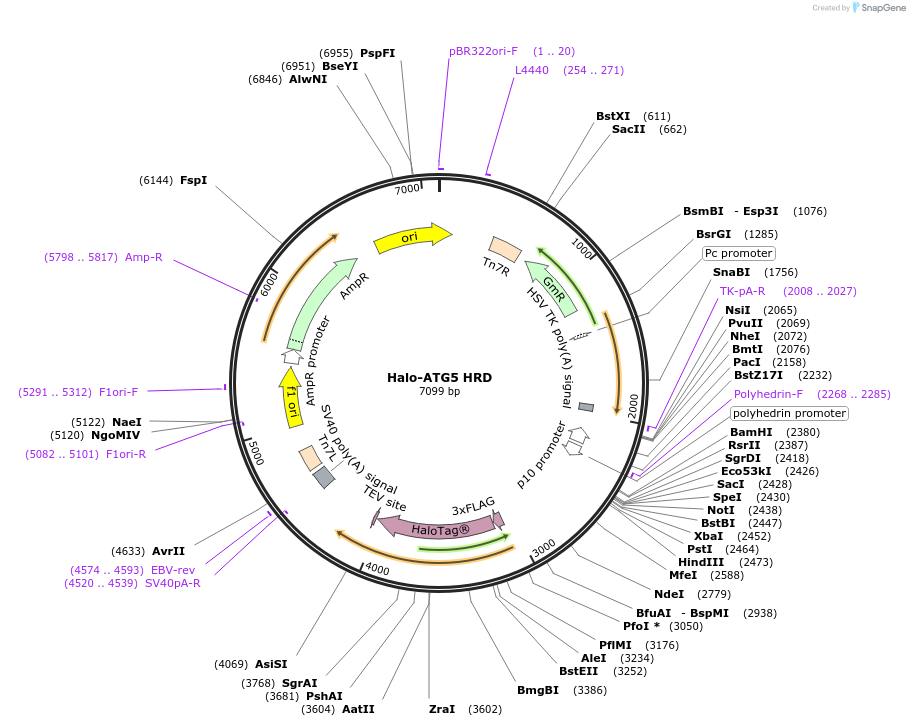

Halo-ATG5 HRD
(Plasmid #207542)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 207542 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pFastBac dual
  • Backbone size w/o insert (bp) 5500
  • Total vector size (bp) 9000
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    HaloTag flanked by human ATG5 locus sequences
  • Species
    H. sapiens (human), Synthetic
  • Promoter Endogenous
  • Tag / Fusion Protein
    • HaloTag (N terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer GCTTTAAAAAACCTCCCACACCTC
  • 3′ sequencing primer AAA CCA CAA CTA GAA TGC AGT GA
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Halo-ATG5 HRD was a gift from Jens Schmidt (Addgene plasmid # 207542 ; http://n2t.net/addgene:207542 ; RRID:Addgene_207542)

  • For your References section:

    Quantitative analysis of autophagy reveals the role of ATG9 and ATG2 in autophagosome formation. Broadbent DG, Barnaba C, Perez GI, Schmidt JC. J Cell Biol. 2023 Jul 3;222(7):e202210078. doi: 10.1083/jcb.202210078. Epub 2023 Apr 28. 10.1083/jcb.202210078 PubMed 37115157
