Addgene

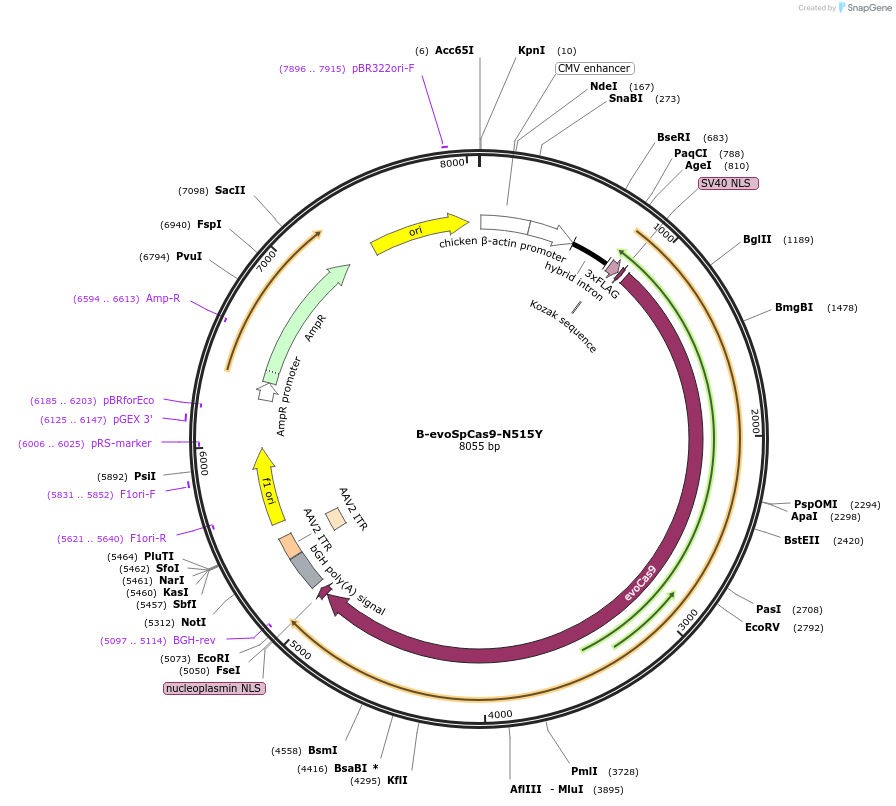

B-evoSpCas9-N515Y
(Plasmid #207364)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 207364 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pX330-like (without U6-sgRNA coding sequence)
  • Vector type
    Mammalian Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    B-evoSpCas9-N515Y
  • Species
    S. pyogenes
  • Insert Size (bp)
    4251
  • Mutation
    M495V, K526E, R661Q, amino acids 1005-1013 replaced with two glycine
  • Promoter CBh
  • Tag / Fusion Protein
    • 3xFLAG (N terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://doi.org/10.1101/2022.08.16.504097 for bioRxiv preprint

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    B-evoSpCas9-N515Y was a gift from Ervin Welker (Addgene plasmid # 207364 ; http://n2t.net/addgene:207364 ; RRID:Addgene_207364)

  • For your References section:

    A cleavage rule for selection of increased-fidelity SpCas9 variants with high efficiency and no detectable off-targets. Kulcsar PI, Talas A, Ligeti Z, Toth E, Rakvacs Z, Bartos Z, Krausz SL, Welker A, Vegi VL, Huszar K, Welker E. Nat Commun. 2023 Sep 16;14(1):5746. doi: 10.1038/s41467-023-41393-5. 10.1038/s41467-023-41393-5 PubMed 37717069
