This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 20701 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepcDNA3
-
Backbone manufacturerInvitrogen
- Backbone size w/o insert (bp) 5352
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameGFP-NLS-lacZ
-
SpeciesArtificial
-
Insert Size (bp)4017
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site HindIII (not destroyed)
- 3′ cloning site XbaI (destroyed during cloning)
- 5′ sequencing primer n/a (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pHM840 was a gift from Thomas Stamminger (Addgene plasmid # 20701 ; http://n2t.net/addgene:20701 ; RRID:Addgene_20701) -
For your References section:
Mapping of nuclear localization signals by simultaneous fusion to green fluorescent protein and to beta-galactosidase. Sorg G, Stamminger T. Biotechniques. 1999 May . 26(5):858-62. 10.2144/99265bm12 PubMed 10337476

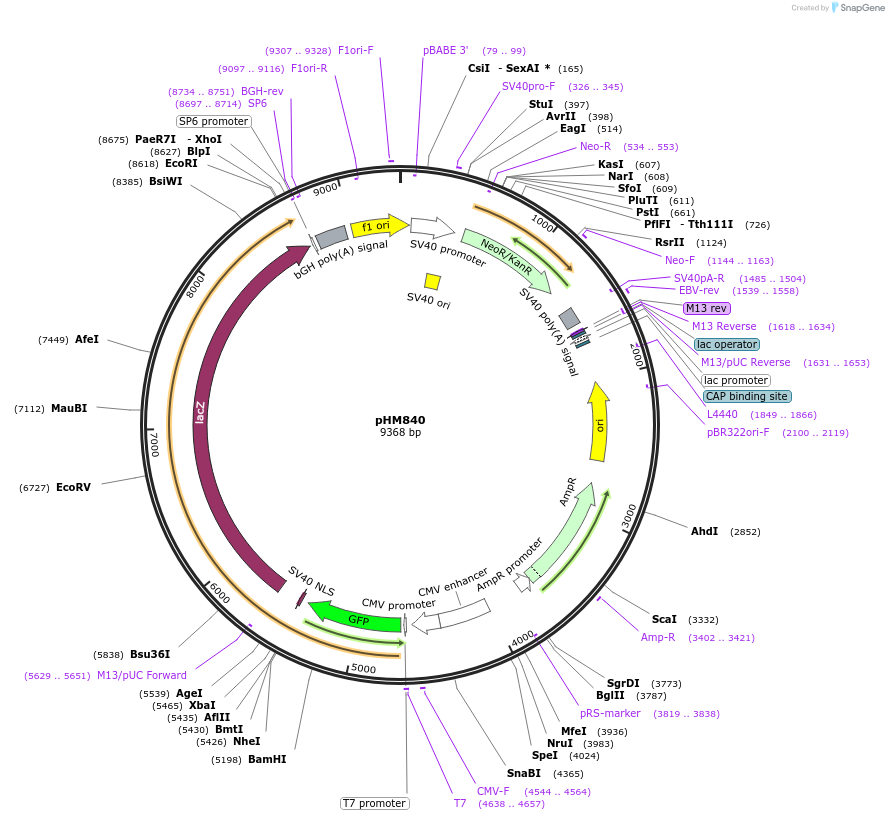

Map uploaded by the depositor.
