pET-tTALE-mNeonGreen-15b
(Plasmid #206870)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 206870 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

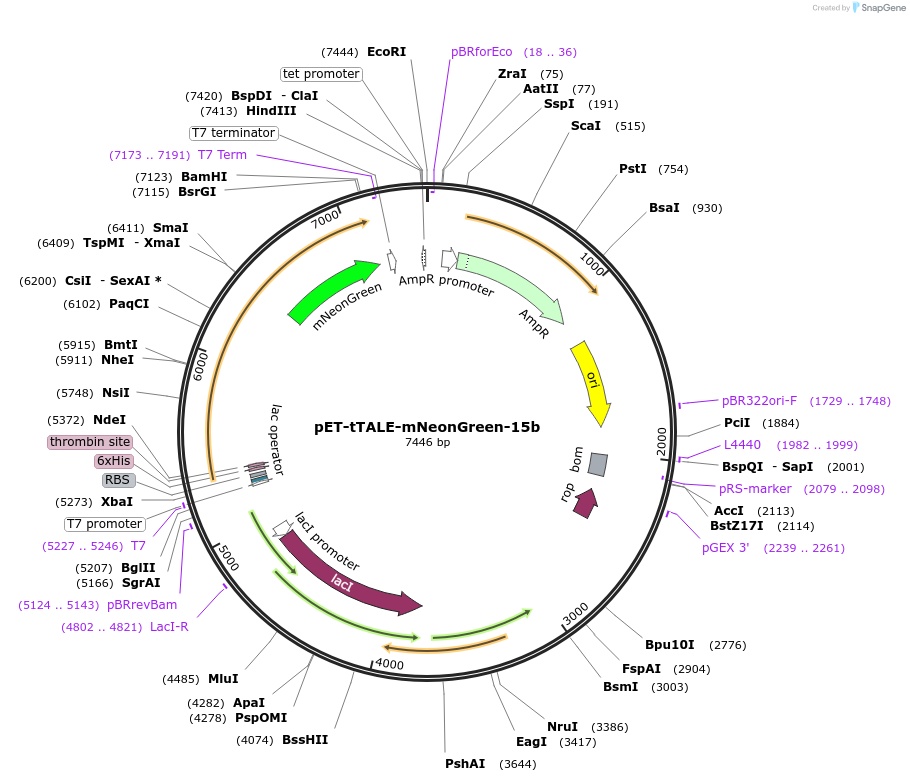

Backbone

  • Vector backbone
    pET-15b
  • Backbone manufacturer
    Novagen
  • Backbone size w/o insert (bp) 5625
  • Total vector size (bp) 1827
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    7-mer tTALE-mNeonGreen
  • Insert Size (bp)
    1827
  • Promoter T7 promoter

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (unknown if destroyed)
  • 3′ cloning site BamHI (unknown if destroyed)
  • 5′ sequencing primer T7 promoter
  • 3′ sequencing primer T7 terminator
    • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pET-tTALE-mNeonGreen-15b was a gift from Kyubong Jo (Addgene plasmid # 206870 ; http://n2t.net/addgene:206870 ; RRID:Addgene_206870)

  • For your References section:

    21 Fluorescent Protein-Based DNA Staining Dyes. Kim YT, Oh H, Seo MJ, Lee DH, Shin J, Bong S, Heo S, Hapsari ND, Jo K. Molecules. 2022 Aug 17;27(16):5248. doi: 10.3390/molecules27165248. 10.3390/molecules27165248 PubMed 36014487
