pAAV_hSyn_GCaMP6m_sWPRE_spA_mDLX_nls_mRuby3_ssWPRE_spA
(Plasmid #205281)

  • Purpose
    CaMP used to measuring calcium changes in neurons, while nls-mRuby is employed to specifically identify cortical GABAergic neurons. This dual labeling approach allows for the simultaneous observation of neuronal activity using GCaMP and the identification of a specific subset of neurons using nls-mRuby, focusing specifically on cortical GABAergic neurons.
  • Depositing Lab

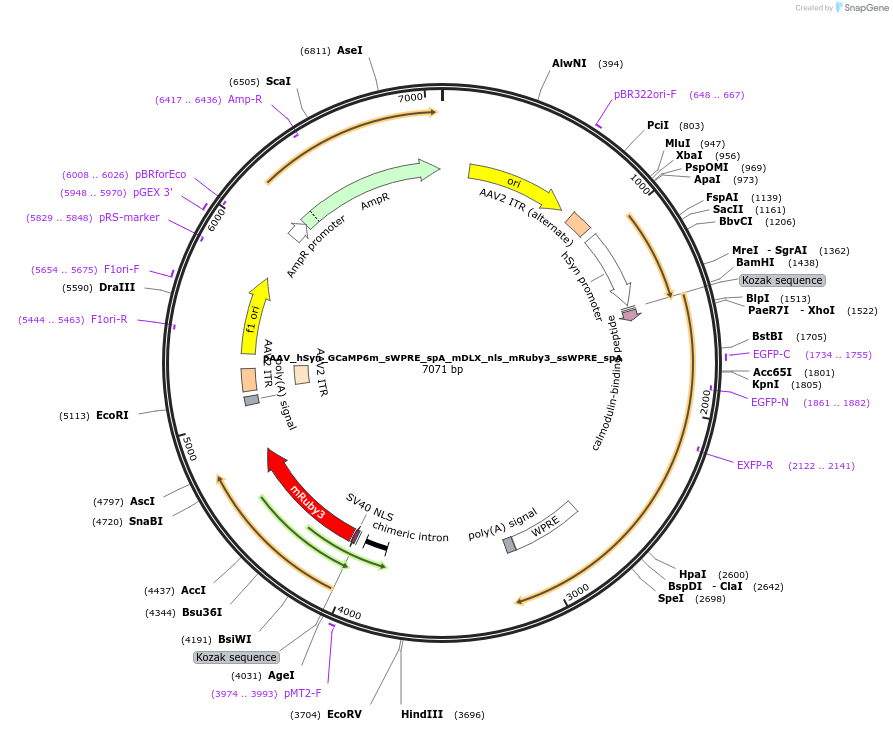

  • Sequence Information

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 205281 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    AAV
  • Vector type
    AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    GCaMP6s
  • Alt name
    mRuby
  • Species
    M. musculus (mouse)

Cloning Information

  • Cloning method Gibson Cloning

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV_hSyn_GCaMP6m_sWPRE_spA_mDLX_nls_mRuby3_ssWPRE_spA was a gift from Matthias Prigge (Addgene plasmid # 205281 ; http://n2t.net/addgene:205281 ; RRID:Addgene_205281)
