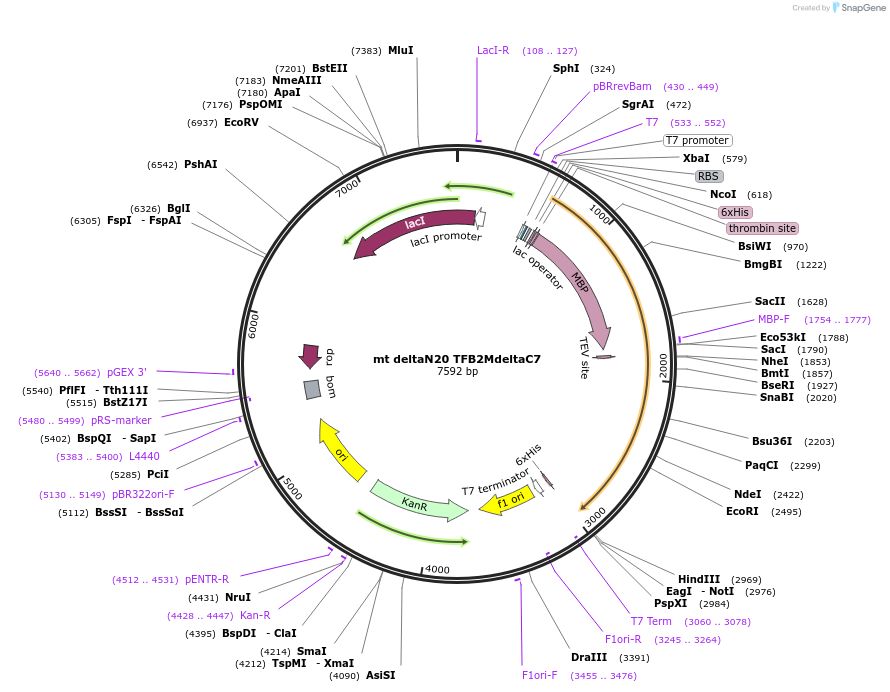

mt deltaN20 TFB2MdeltaC7
(Plasmid #205060)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 205060 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pBR322
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    TFB2M
  • Species
    H. sapiens (human)
  • Mutation
    Lacks N-terminal 20 aa and C-terminal 7 aa
  • Entrez Gene
    TFB2M (a.k.a. Hkp1, mtTFB2)

Cloning Information

  • Cloning method Unknown

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    mt deltaN20 TFB2MdeltaC7 was a gift from Smita Patel (Addgene plasmid # 205060 ; http://n2t.net/addgene:205060 ; RRID:Addgene_205060)
  • For your References section:

    The C-terminal tail of the yeast mitochondrial transcription factor Mtf1 coordinates template strand alignment, DNA scrunching and timely transition into elongation. Basu U, Lee SW, Deshpande A, Shen J, Sohn BK, Cho H, Kim H, Patel SS. Nucleic Acids Res. 2020 Mar 18;48(5):2604-2620. doi: 10.1093/nar/gkaa040. 10.1093/nar/gkaa040 PubMed 31980825
