pHeEf1a-mEGFP-NLS
(Plasmid
#205012)
-

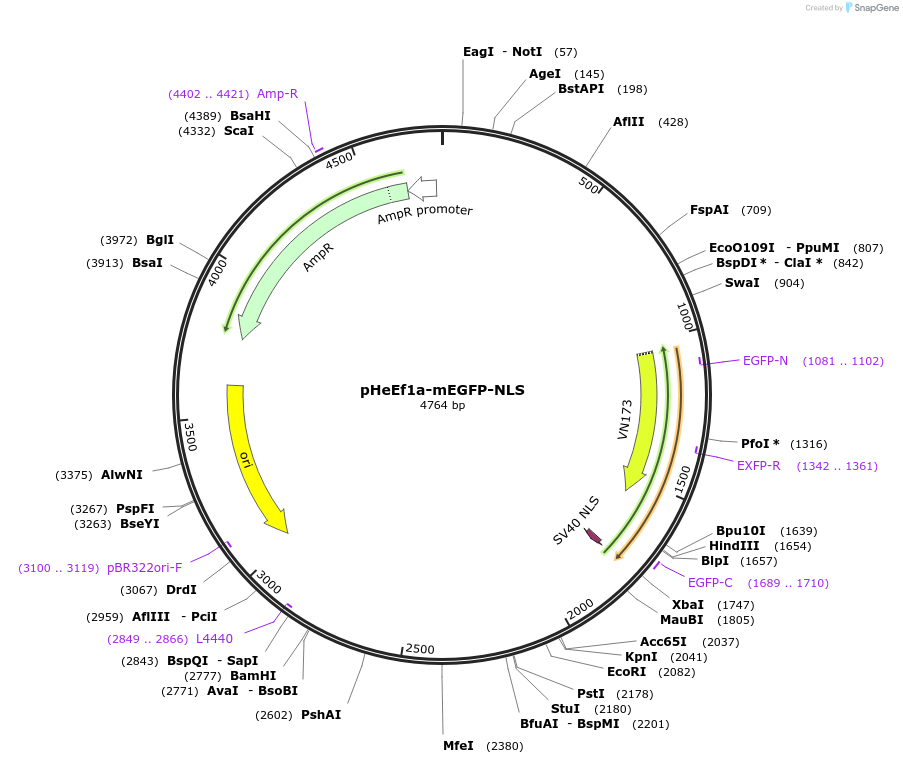

PurposeThe vector contains 1kbp of the upstream and downstream regions of the ef1a gene from Hypsibius exemplaris, with the mEGFP gene with NLS sequence positioned in between.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 205012 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepCAGGS
- Backbone size w/o insert (bp) 2021
-
Vector typeTardigrade expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namemEGFP-NLS flanked by 1kbp upstream and downstream of the ef1a gene from Hypsibius exemplaris
-
SpeciesHypsibius exemplaris, Tardigrade
-
Insert Size (bp)1000
Cloning Information
- Cloning method Ligation Independent Cloning
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pHeEf1a-mEGFP-NLS was a gift from Kazuharu Arakawa (Addgene plasmid # 205012 ; http://n2t.net/addgene:205012 ; RRID:Addgene_205012) -
For your References section:
In vivo expression vector derived from anhydrobiotic tardigrade genome enables live imaging in Eutardigrada. Tanaka S, Aoki K, Arakawa K. Proc Natl Acad Sci U S A. 2023 Jan 31;120(5):e2216739120. doi: 10.1073/pnas.2216739120. Epub 2023 Jan 24. 10.1073/pnas.2216739120 PubMed 36693101
