MPRA_minCMV+GFP
(Plasmid
#204866)
-
PurposeVector containing GFP driven by minimal CMV promoter. This cassette can be cloned into MPRA vectors to serve as a reporter gene.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 204866 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

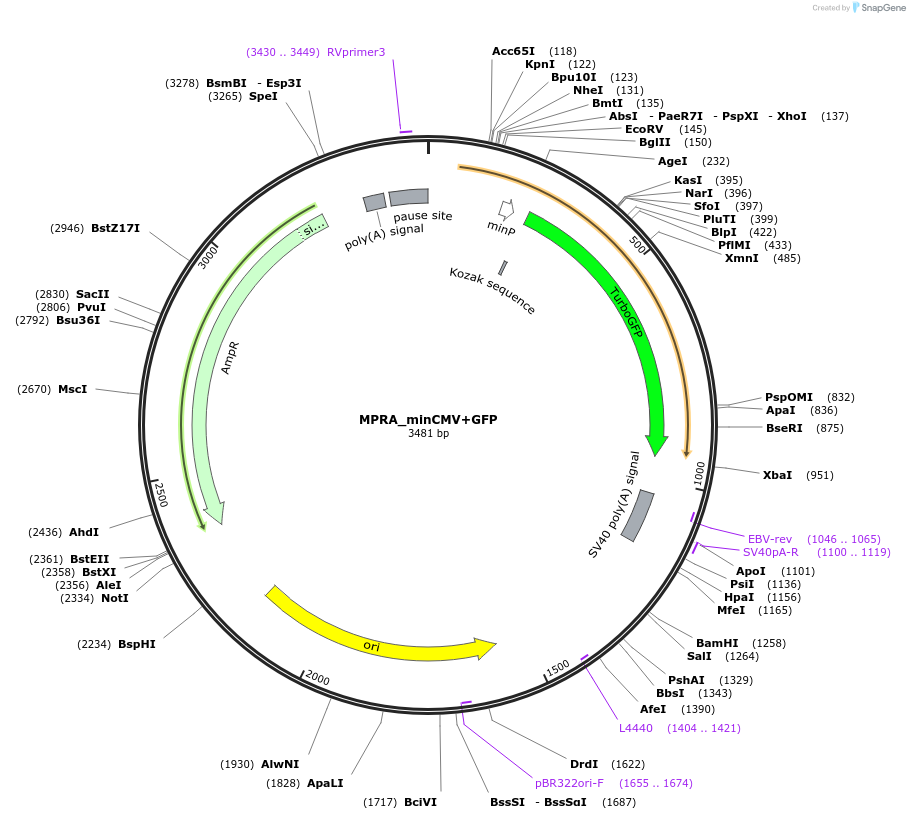

Backbone
-
Vector backbonepGL4.23
-
Backbone manufacturerPromega
- Backbone size w/o insert (bp) 2642
- Total vector size (bp) 3481
-
Vector typeMammalian Expression, Bacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameminCMV:GFP
-
Alt namepeTurboGFP-dest1
-
SpeciesPontellina plumata
-
Insert Size (bp)839
- Promoter minimal CMV
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site KpnI (not destroyed)
- 3′ cloning site XbaI (not destroyed)
- 5′ sequencing primer CGCCGCGTGGAGGAGGA
- 3′ sequencing primer CGACGCTCTTCCGATCT (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
A portion of this plasmid was derived from a plasmid made byRinn Lab, CU Boulder
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
MPRA_minCMV+GFP was a gift from Philipp Maass (Addgene plasmid # 204866 ; http://n2t.net/addgene:204866 ; RRID:Addgene_204866) -
For your References section:
Systematic characterization of regulatory variants of blood pressure genes. Oliveros W, Delfosse K, Lato DF, Kiriakopulos K, Mokhtaridoost M, Said A, McMurray BJ, Browning JWL, Mattioli K, Meng G, Ellis J, Mital S, Mele M, Maass PG. Cell Genom. 2023 May 24;3(7):100330. doi: 10.1016/j.xgen.2023.100330. eCollection 2023 Jul 12. 10.1016/j.xgen.2023.100330 PubMed 37492106
