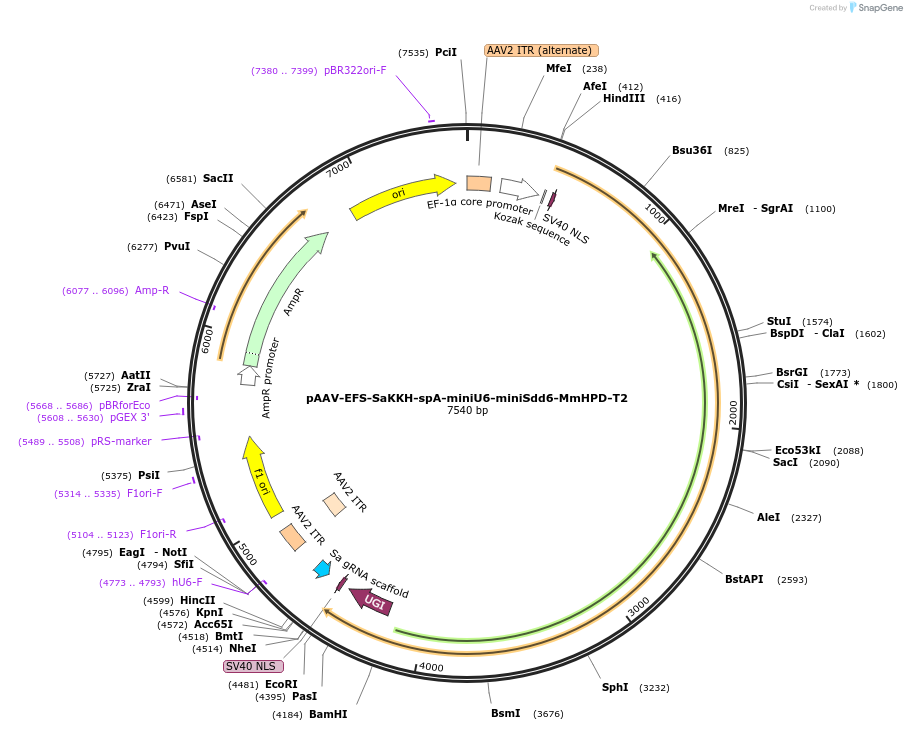

pAAV-EFS-SaKKH-spA-miniU6-miniSdd6-MmHPD-T2
(Plasmid
#204852)
-
PurposeAAV vector for cytosine base editing using miniSdd6 at HPD-T2 target site in mouse
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 204852 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepX601-AAV-CMV::NLS-SaCas9-NLS-3xHA-bGHpA;U6::BsaI-sgRNA
-
Backbone manufacturerFeng Zhang, Addgene #61591
-
Vector typeAAV, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameminiSdd6-nSaCas9KKH(D10A)-UGI
-
Alt namemouse HPD sgRNA
-
SpeciesSynthetic
-
MutationD10A, E782K, N968K, R1015H in SaCas9
- Promoter EFS, miniU6
Cloning Information
- Cloning method Gibson Cloning
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://doi.org/10.1101/2023.05.21.541555 for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAAV-EFS-SaKKH-spA-miniU6-miniSdd6-MmHPD-T2 was a gift from Caixia Gao (Addgene plasmid # 204852 ; http://n2t.net/addgene:204852 ; RRID:Addgene_204852) -
For your References section:
Discovery of deaminase functions by structure-based protein clustering. Huang J, Lin Q, Fei H, He Z, Xu H, Li Y, Qu K, Han P, Gao Q, Li B, Liu G, Zhang L, Hu J, Zhang R, Zuo E, Luo Y, Ran Y, Qiu JL, Zhao KT, Gao C. Cell. 2023 Jul 20;186(15):3182-3195.e14. doi: 10.1016/j.cell.2023.05.041. Epub 2023 Jun 27. 10.1016/j.cell.2023.05.041 PubMed 37379837
