pJRM3 - [BAGp | mScarlet | tbb-2 UTR]
(Plasmid
#204616)
-
PurposemScarlet BioPart for BAG neurons. (1) Mark neurons or (2) cell-specific expression of transgenes (N or C-terminal fusions, or untagged). Compatible with single-copy insertion (MosTI) or arrays.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 204616 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backboneTwist Amp High
-
Backbone manufacturerTwist Biosciences
-
Vector typeWorm Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert name[BAGp | wrmScarlet | tbb-2 UTR]
-
SpeciesC. elegans (nematode)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
See www.wormbuilder.org/BioParts for more information.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pJRM3 - [BAGp | mScarlet | tbb-2 UTR] was a gift from Christian Froekjaer-Jensen (Addgene plasmid # 204616 ; http://n2t.net/addgene:204616 ; RRID:Addgene_204616) -
For your References section:
Characterizing a standardized BioPart for PVQ-specific expression in C. elegans. AlHarbi S, Frokjaer-Jensen C. MicroPubl Biol. 2023 Jun 22;2023:10.17912/micropub.biology.000870. doi: 10.17912/micropub.biology.000870. eCollection 2023. 10.17912/micropub.biology.000870 PubMed 37426742

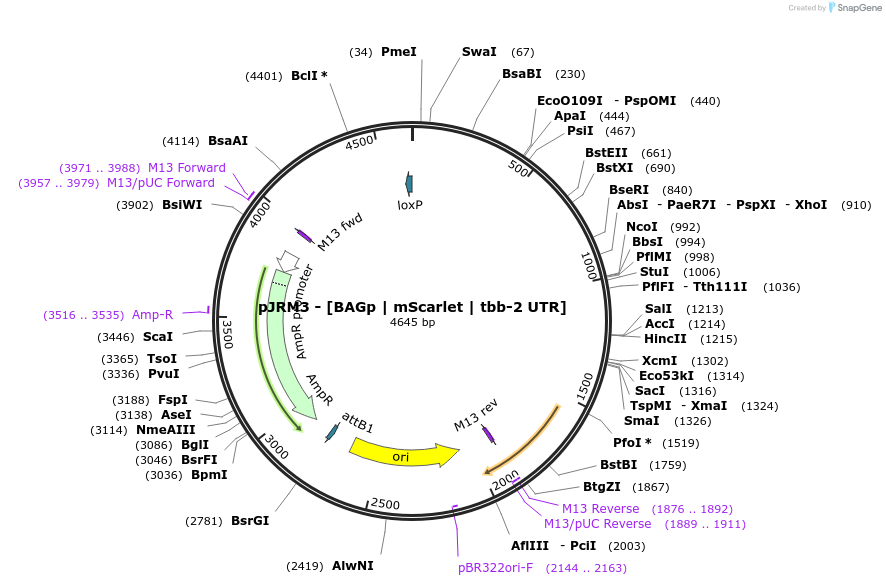

Map uploaded by the depositor.
