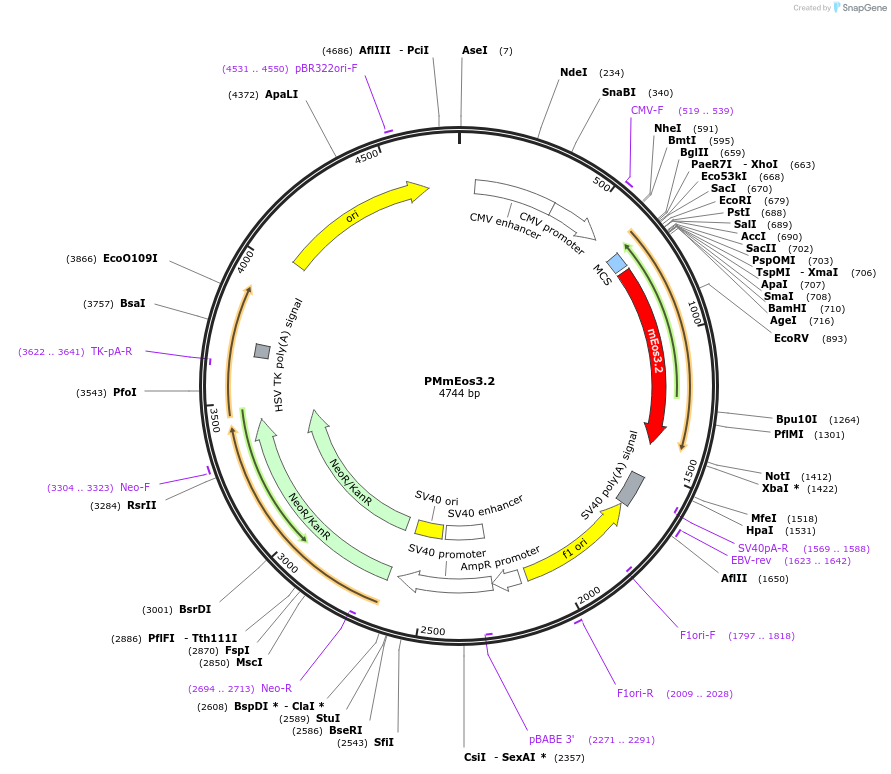

PMmEos3.2
(Plasmid #203755)

• Purpose: Encodes the membrane anchor of Lyn including the first 10 residues of the N terminus, with 1 myristoylation and 1 palmitoylation, with mEos3.2 fused to the C terminus. Used as a fluorescent plasma membrane probe.
• Depositing Lab: Sarah Veatch
• Publication: Shelby et al Nat Chem Biol. 2023 Jun;19(6):750-758. doi: 10.1038/s41589-023-01268-8. Epub 2023 Mar 30.

Backbone

• Vector backbone: mEos3.2-N1
• Backbone manufacturer: Addgene; Michael Davidson's lab
• Vector type: Mammalian Expression

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: Lyn n-term
• Species: H. sapiens (human)
• Entrez Gene: LYN (a.k.a. JTK8, SAIDV, p53Lyn, p56Lyn)
• Tag / Fusion Protein:
  • mEos3.2 (C terminal on insert)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: Unknown (unknown if destroyed)

Resource Information

• Supplemental Documents:
  • PMmEos3.2.gb
• A portion of this plasmid was derived from a plasmid made by: Insert DNA courtesy of the Barbara Baird and David Holowka lab

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
