pOET3-N-TEV-Twin-Strep
(Plasmid
#203323)
-
Purpose(Empty Backbone) Generate the baculovirus to express C-terminal Tobacco Etch Virus (TEV) protease cleavable Twin-Strep-tagged protein (ENLYFQGS-WSHPQFEK-(GGGS)2-GGSA-WSHPQFEK) in insect cells
-
Depositing Lab
-

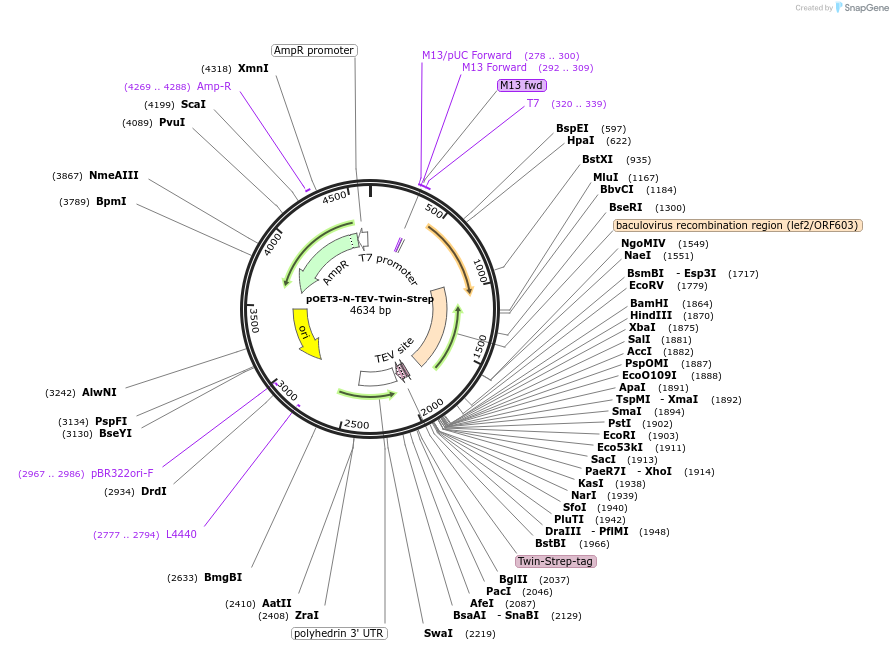

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 203323 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepOET3
-
Backbone manufacturerOxford Expression Technology
- Backbone size (bp) 4640
-
Modifications to backboneTobacco Etch Virus (TEV) protease cleavable Twin-Strep-tag (ENLYFQGS- WSHPQFEK-(GGGS)2-GGSA-WSHPQFEK) was cloned into the XhoI/BglII site.
-
Vector typeInsect Expression
-
Tags
/ Fusion Proteins
- TEV cleavable site (ENLYFQG) (C terminal on backbone)
- Twin-strep-tag (C terminal on backbone)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Cloning Information
- Cloning method Gibson Cloning
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
The insert can be subcloned into XhoI site via Gibson Assembly.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pOET3-N-TEV-Twin-Strep was a gift from Chiaki Murakami (Addgene plasmid # 203323 ; http://n2t.net/addgene:203323 ; RRID:Addgene_203323) -
For your References section:
Diacylglycerol kinase zeta interacts with sphingomyelin synthase 1 and sphingomyelin synthase-related protein via different regions. Furuta M, Murakami C, Numagami Y, Suzuki R, Sakane F. FEBS Open Bio. 2023 May 11. doi: 10.1002/2211-5463.13628. 10.1002/2211-5463.13628 PubMed 37166445
