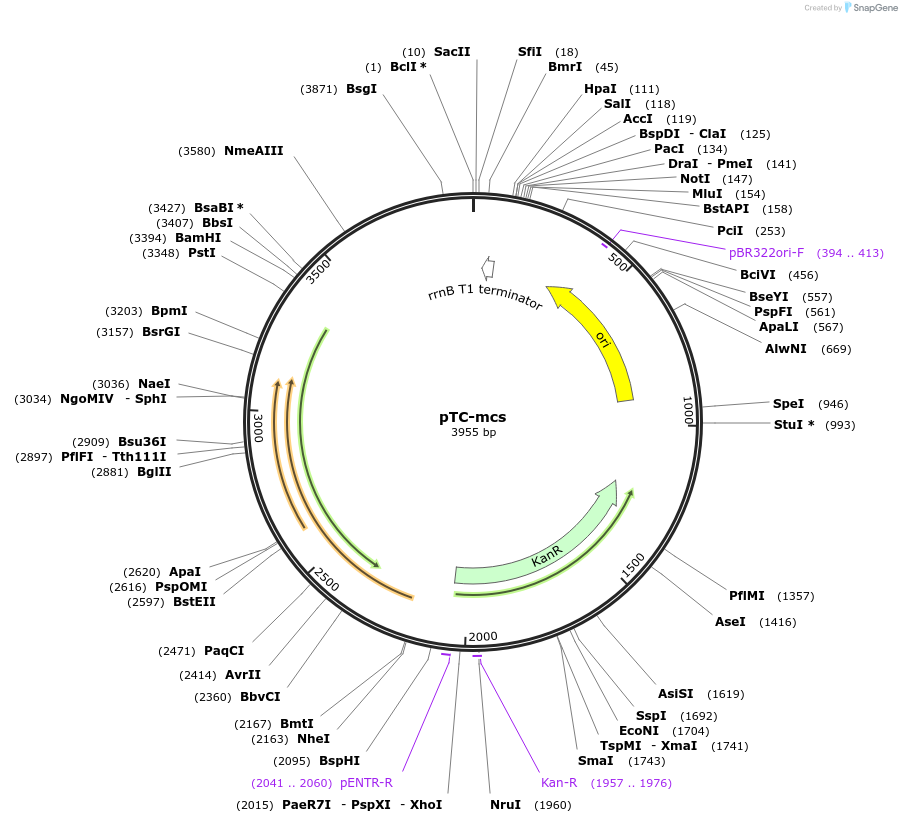

pTC-mcs
(Plasmid
#20317)
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 20317 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepMV306K
- Backbone size w/o insert (bp) 3933
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert namemultiple cloning site
-
Insert Size (bp)22
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site ClaII (not destroyed)
- 3′ cloning site NotI (not destroyed)
- 5′ sequencing primer n/a (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pTC-mcs was a gift from Dirk Schnappinger (Addgene plasmid # 20317 ; http://n2t.net/addgene:20317 ; RRID:Addgene_20317) -
For your References section:
Improved tetracycline repressors for gene silencing in mycobacteria. Klotzsche M, Ehrt S, Schnappinger D. Nucleic Acids Res. 2009 Jan 27. ():. 10.1093/nar/gkp015 PubMed 19174563
