Addgene

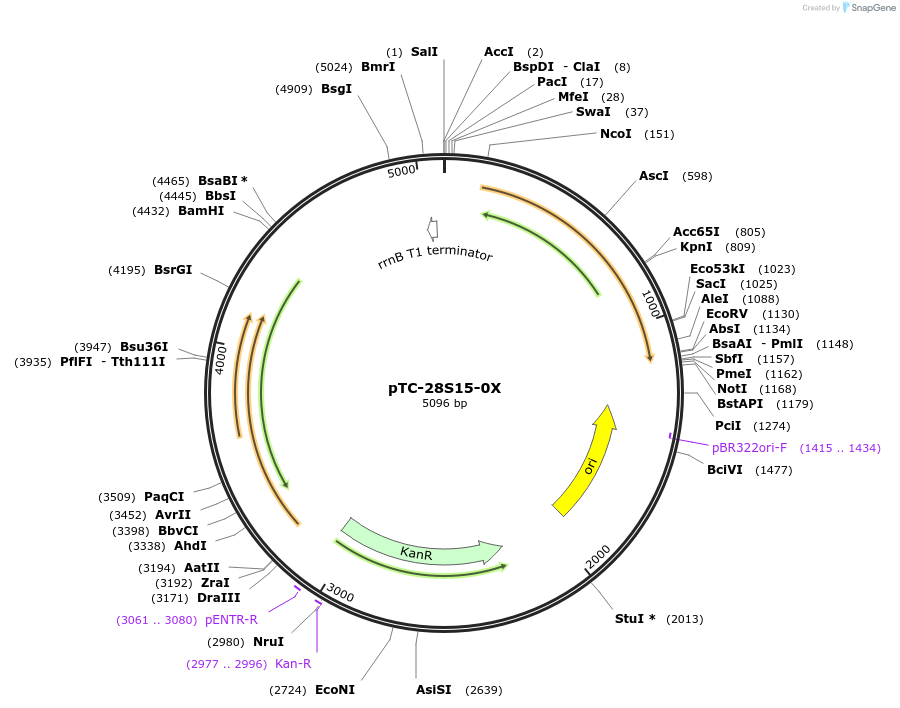

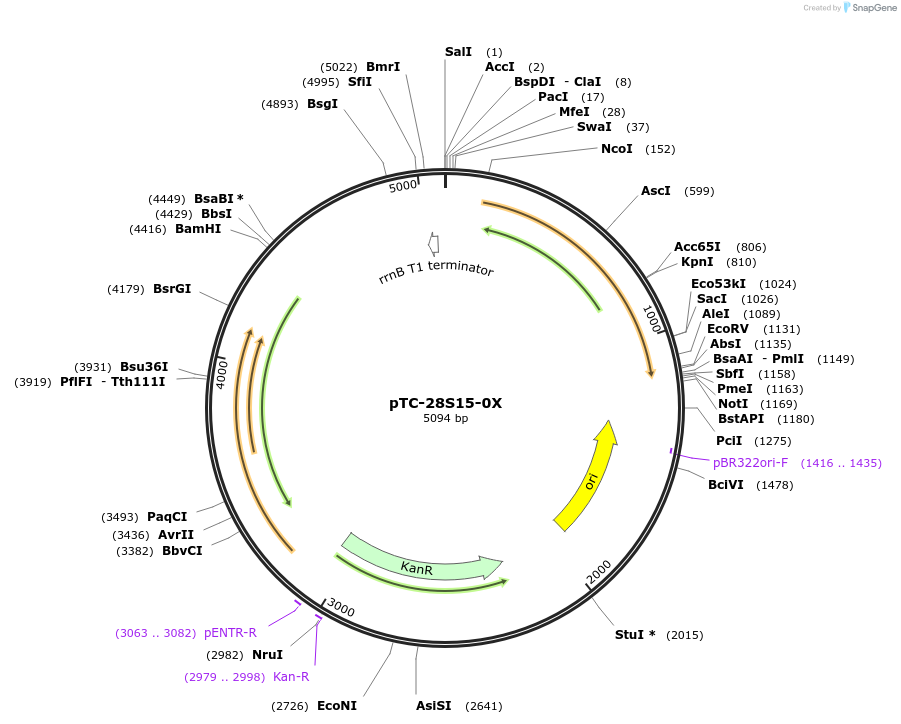

pTC-28S15-0X
(Plasmid #20316)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 20316 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pTC-mcs
  • Backbone size w/o insert (bp) 3942
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    Psmyc-tetR#28
  • Species
    synthetic gene derived from Tn10 tetR
  • Insert Size (bp)
    1152

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site PacI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer n/a
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

A missense mutation was detected in the integrase ORF (T3899A). The impact of this mutation on plasmid functionality is unknown.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTC-28S15-0X was a gift from Dirk Schnappinger (Addgene plasmid # 20316 ; http://n2t.net/addgene:20316 ; RRID:Addgene_20316)
  • For your References section:

    Improved tetracycline repressors for gene silencing in mycobacteria. Klotzsche M, Ehrt S, Schnappinger D. Nucleic Acids Res. 2009 Jan 27. ():. 10.1093/nar/gkp015 PubMed 19174563
