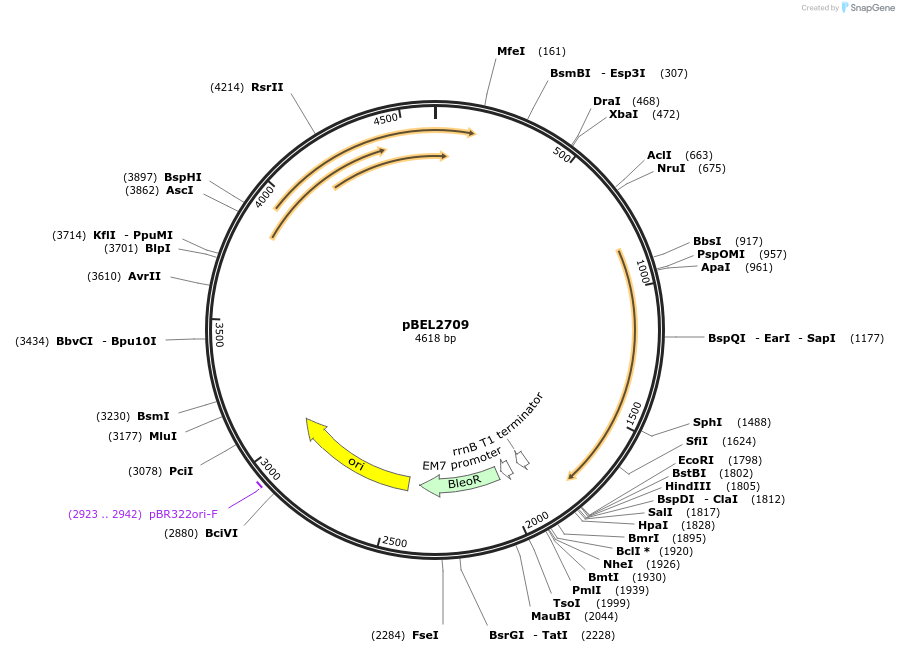

pBEL2709
(Plasmid #201978)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 201978 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pMV261-Zeo
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Bleocin (Zeocin), 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    mceG
  • Alt name
    MSMEG_1366
  • Species
    M. smegmatis
  • Mutation
    Deletion of residues 312-360

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer cagcgaggacaacttgag
  • 3′ sequencing primer tgtcaacacgtgctcgag
    • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    Jeffery Cox (source of pMV261-Zeo plasmid)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBEL2709 was a gift from Gira Bhabha & Damian Ekiert (Addgene plasmid # 201978 ; http://n2t.net/addgene:201978 ; RRID:Addgene_201978)

  • For your References section:

    Structure of an endogenous mycobacterial MCE lipid transporter. Chen J, Fruhauf A, Fan C, Ponce J, Ueberheide B, Bhabha G, Ekiert D. Res Sq. 2023 Jan 10:rs.3.rs-2412186. doi: 10.21203/rs.3.rs-2412186/v1. Preprint. 10.21203/rs.3.rs-2412186/v1 PubMed 36711512
