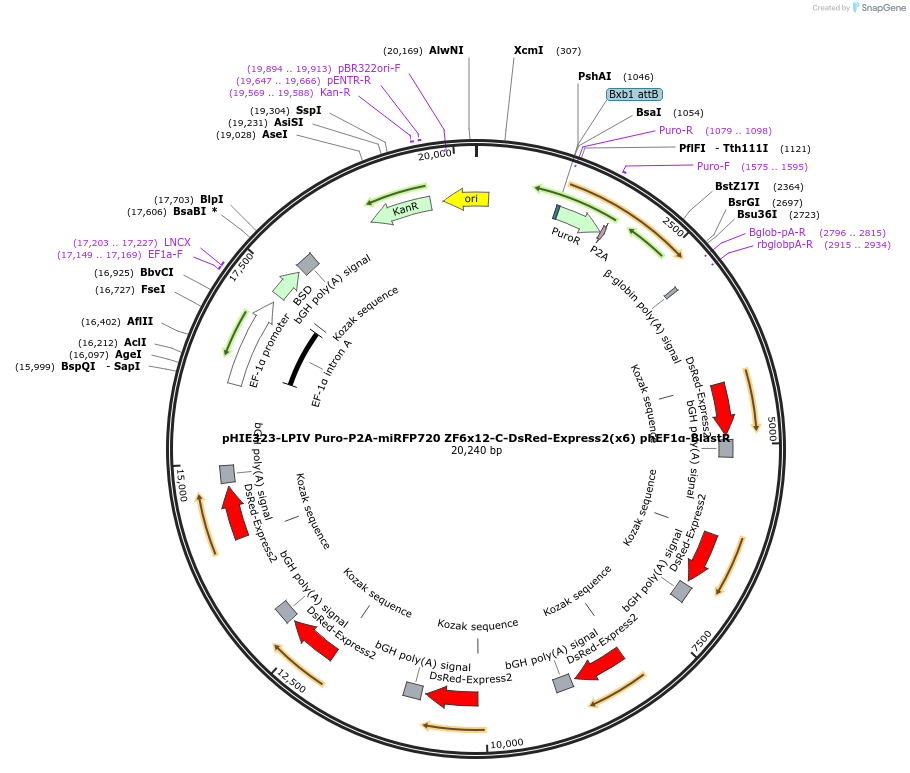

pHIE323-LPIV Puro-P2A-miRFP720 ZF6x12-C-DsRed-Express2(x6) phEF1α-BlastR
(Plasmid #201539)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 201539 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pD1178 Destination Vector
  • Vector type
    Mammalian Expression
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert 1

  • Gene/Insert name
    PuromycinR-P2A-miRFP720
  • Species
    H. sapiens (human)
  • Promoter None

Cloning Information for Gene/Insert 1

  • Cloning method Restriction Enzyme
  • 5′ cloning site BpiI (destroyed during cloning)
  • 3′ cloning site BpiI (destroyed during cloning)
  • 5′ sequencing primer GAGATTATCAAAAAGGATCTTCACCTAGATCC
    • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    ZF6x12-C-DsRed-Express2(x6)
  • Species
    H. sapiens (human)
  • Promoter ZF6x12(C)_YB_TATA Minimal Promoter

Cloning Information for Gene/Insert 2

  • Cloning method Restriction Enzyme
  • 5′ cloning site BpiI (destroyed during cloning)
  • 3′ cloning site BpiI (destroyed during cloning)
  • 5′ sequencing primer gacagaatcatagaacggcctgg
    • (Common Sequencing Primers)

Gene/Insert 3

  • Gene/Insert name
    BlasticidinR
  • Species
    H. sapiens (human)
  • Promoter hEF1α

Cloning Information for Gene/Insert 3

  • Cloning method Restriction Enzyme
  • 5′ cloning site BpiI (destroyed during cloning)
  • 3′ cloning site BpiI (destroyed during cloning)
  • 5′ sequencing primer gaatctggtggcaccttcgcg
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://doi.org/10.1101/2023.04.29.538810 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pHIE323-LPIV Puro-P2A-miRFP720 ZF6x12-C-DsRed-Express2(x6) phEF1α-BlastR was a gift from Joshua Leonard (Addgene plasmid # 201539 ; http://n2t.net/addgene:201539 ; RRID:Addgene_201539)

  • For your References section:

    Enhancing extracellular vesicle cargo loading and functional delivery by engineering protein-lipid interactions. Peruzzi JA, Gunnels TF, Edelstein HI, Lu P, Baker D, Leonard JN, Kamat NP. Nat Commun. 2024 Jul 4;15(1):5618. doi: 10.1038/s41467-024-49678-z. 10.1038/s41467-024-49678-z PubMed 38965227
