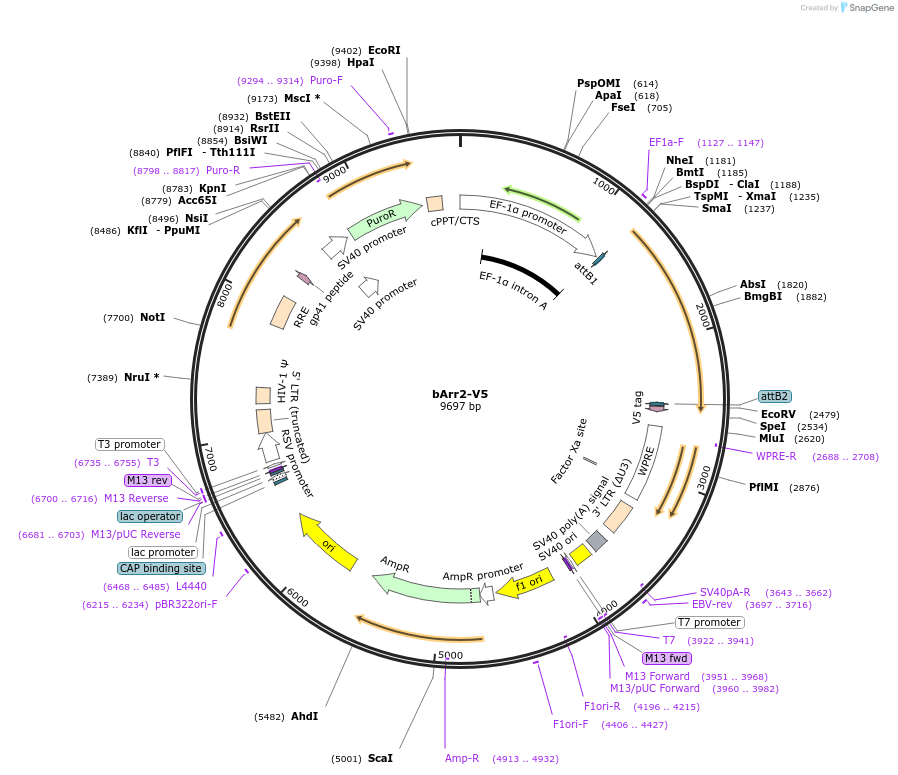

bArr2-V5
(Plasmid #201494)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 201494 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pLX317
  • Backbone manufacturer
    Broad Institute
  • Backbone size w/o insert (bp) 10065
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    bArr2-V5
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1305
  • Entrez Gene
    ARRB2 (a.k.a. ARB2, ARR2, BARR2)
  • Promoter EF1a
  • Tag / Fusion Protein
    • V5 (C terminal on insert)

Cloning Information

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    H. sapiens (human)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    bArr2-V5 was a gift from Patrick Giguère (Addgene plasmid # 201494 ; http://n2t.net/addgene:201494 ; RRID:Addgene_201494)

  • For your References section:

    Development of a V5-tag-directed nanobody and its implementation as an intracellular biosensor of GPCR signalling. Zeghal M, Matte K, Venes A, Patel S, Laroche G, Sarvan S, Joshi M, Rain JC, Couture JF, Giguere PM. J Biol Chem. 2023 Jul 28:105107. doi: 10.1016/j.jbc.2023.105107. 10.1016/j.jbc.2023.105107 PubMed 37517699
