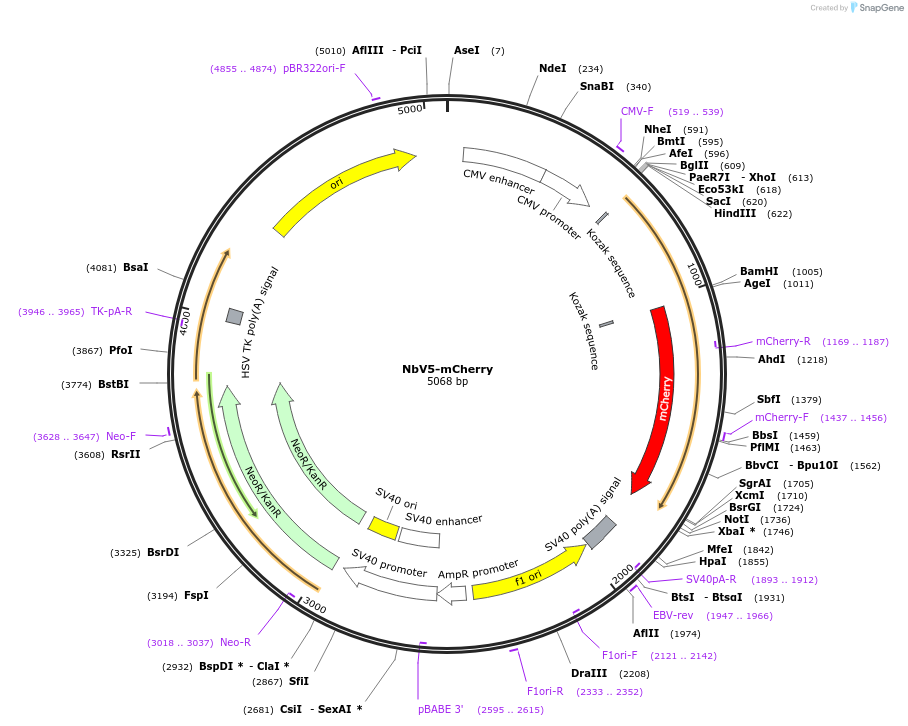

NbV5-mCherry
(Plasmid #201474)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 201474 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pmcherryN1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4722
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    NbV5-mCherry
  • Species
    Synthetic
  • Insert Size (bp)
    1110
  • Promoter CMV
  • Tag / Fusion Protein
    • mCherry (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer TTGGTCACCTTCAGCTTGG
    • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Synthetic

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    NbV5-mCherry was a gift from Patrick Giguère (Addgene plasmid # 201474 ; http://n2t.net/addgene:201474 ; RRID:Addgene_201474)

  • For your References section:

    Development of a V5-tag-directed nanobody and its implementation as an intracellular biosensor of GPCR signalling. Zeghal M, Matte K, Venes A, Patel S, Laroche G, Sarvan S, Joshi M, Rain JC, Couture JF, Giguere PM. J Biol Chem. 2023 Jul 28:105107. doi: 10.1016/j.jbc.2023.105107. 10.1016/j.jbc.2023.105107 PubMed 37517699
