pRDA_816
(Plasmid
#201157)
-
PurposeEnAsCas12a with a deactivated DNAse domain (D908A), N' 5x tandem ALFA-tags and C' VP64 and NLS for CRISPRa
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 201157 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

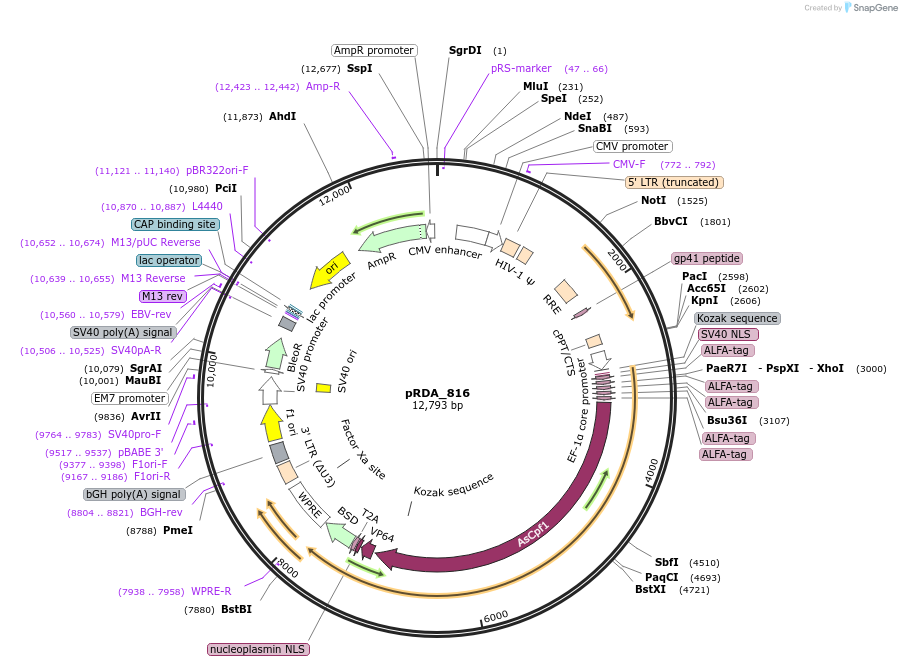

Backbone
-
Vector backbonepRDA_816
- Total vector size (bp) 12793
-
Vector typeLentiviral, CRISPR
-
Selectable markersBlasticidin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert name5x-ALFA tag-dEnAsCas12a-VP64
-
Alt name5x-tag-dCas12a-VP64
-
SpeciesEnhanced Acidaminococcus
-
Insert Size (bp)4098
-
MutationD908A
- Promoter EFS
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer n/a
- 3′ sequencing primer n/a (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://www.biorxiv.org/content/10.1101/2023.02.09.527918v1 for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pRDA_816 was a gift from John Doench (Addgene plasmid # 201157 ; http://n2t.net/addgene:201157 ; RRID:Addgene_201157) -
For your References section:
Optimization of Cas12a for multiplexed genome-scale transcriptional activation. Griffith AL, Zheng F, McGee AV, Miller NW, Szegletes ZM, Reint G, Gademann F, Nwolah I, Hegde M, Liu YV, Goodale A, Doench JG. Cell Genom. 2023 Sep 1;3(9):100387. doi: 10.1016/j.xgen.2023.100387. eCollection 2023 Sep 13. 10.1016/j.xgen.2023.100387 PubMed 37719144
