pTn7-SCOUT20
(Plasmid
#200990)
-
Purpose(Empty Backbone) pL0V-Lv2-pUC18R6KT-miniTn7-GG-Esp3I sites for Antb modules, ApR
-
Depositing Lab
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 200990 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.
Backbone
-
Vector backbonepTn7-SCOUT10
-
Backbone manufacturerPhilip Poole lab
- Backbone size (bp) 4659
-
Modifications to backbonelacZ Golden Gate level 1cloning was replace by a GG level two containg the chromogenic gene tspurple
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)EC100D pir-116
-
Copy numberHigh Copy
Cloning Information
- Cloning method Restriction Enzyme
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Ec100D pir-116 genotype:
F- mcrA Δ(mrr-hsdRMS-mcrBC) ϕ80dlacZΔM15 ΔlacX74 recA1 endA1 araD139 Δ(ara, leu)7697 galU galK λ- rpsL nupG pir-116(DHRF) Maintains plasmids at ~250 copies per cell.
This strain is naturally resistant to streptomycin
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pTn7-SCOUT20 was a gift from Philip Poole (Addgene plasmid # 200990 ; http://n2t.net/addgene:200990 ; RRID:Addgene_200990) -
For your References section:
Stable, fluorescent markers for tracking synthetic communities and assembly dynamics. Jorrin B, Haskett TL, Knights HE, Martyn A, Underwood TJ, Dolliver J, Ledermann R, Poole PS. Microbiome. 2024 May 7;12(1):81. doi: 10.1186/s40168-024-01792-2. 10.1186/s40168-024-01792-2 PubMed 38715147

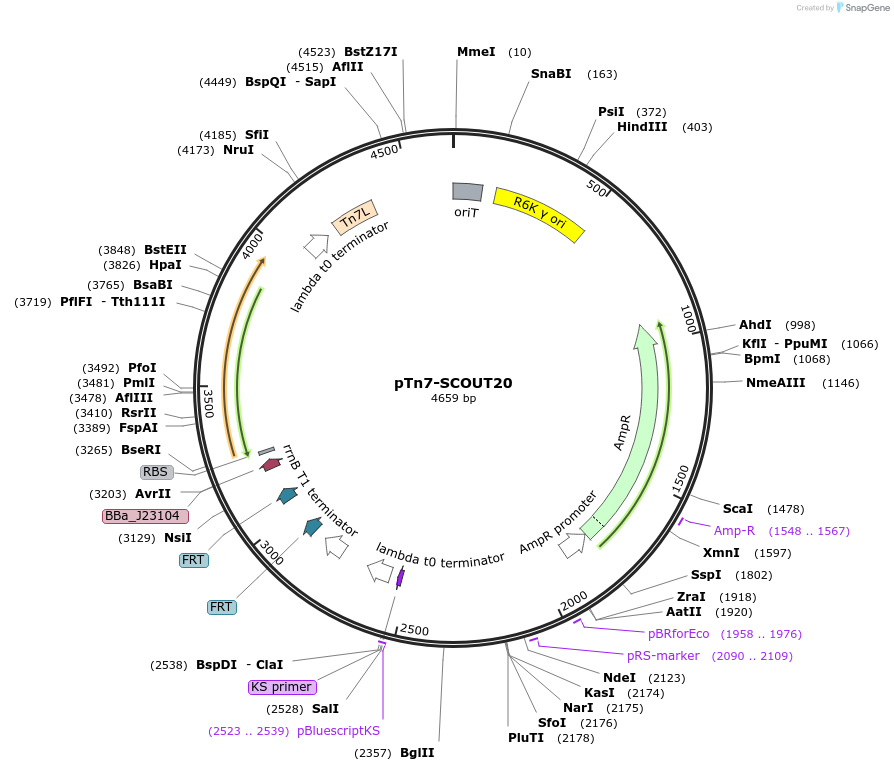

Map uploaded by the depositor.
