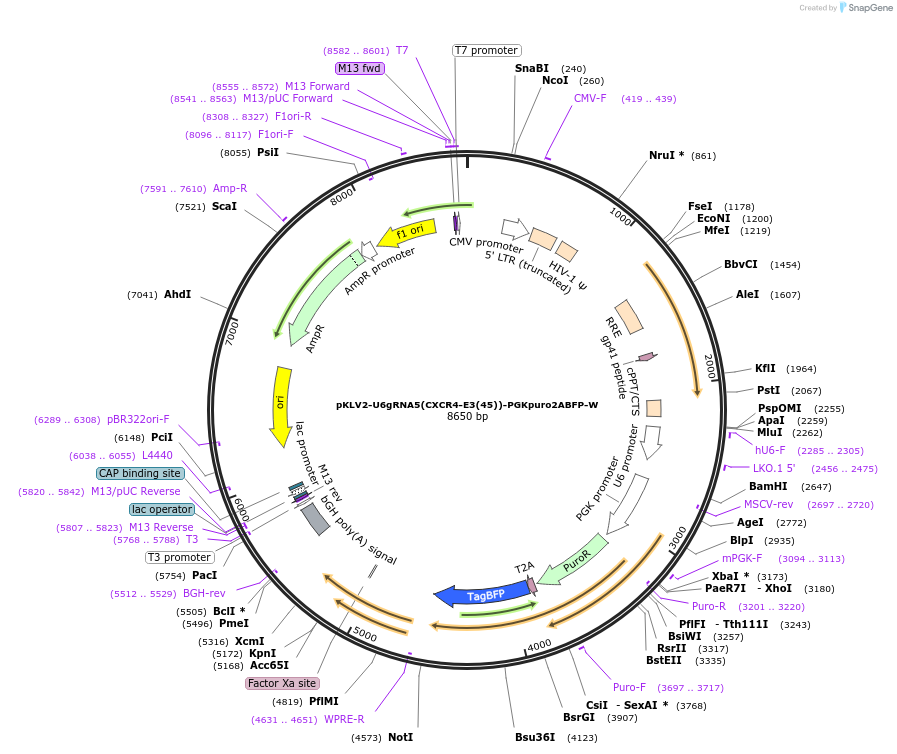

pKLV2-U6gRNA5(CXCR4-E3(45))-PGKpuro2ABFP-W
(Plasmid #200482)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 200482 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pKLV2-U6gRNA5(BbsI)-PGKpuro2ABFP-W
  • Backbone manufacturer
    addgene
  • Backbone size w/o insert (bp) 8648
  • Total vector size (bp) 8650
  • Vector type
    Lentiviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    CXCR4-E3(45)
  • gRNA/shRNA sequence
    CTTAATGTATTCAGGGCTG
  • Species
    H. sapiens (human)
  • Entrez Gene
    CXCR4 (a.k.a. CD184, D2S201E, FB22, HM89, HSY3RR, LAP-3, LAP3, LCR1, LESTR, NPY3R, NPYR, NPYRL, NPYY3R, WHIM, WHIMS, WHIMS1)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BbsI (destroyed during cloning)
  • 3′ cloning site BbsI (destroyed during cloning)
  • 5′ sequencing primer AGATAATTAGAATTAATTTGACTG
  • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pKLV2-U6gRNA5(CXCR4-E3(45))-PGKpuro2ABFP-W was a gift from Kosuke Yusa (Addgene plasmid # 200482 ; http://n2t.net/addgene:200482 ; RRID:Addgene_200482)
  • For your References section:

    Canonical BAF complex regulates the oncogenic program in human T-cell acute lymphoblastic leukemia. Aoki K, Hyuga M, Tarumoto Y, Nishibuchi G, Ueda A, Ochi Y, Sugino S, Mikami T, Kobushi H, Kato I, Akahane K, Inukai T, Takaori-Kondo A, Takita J, Ogawa S, Yusa K. Blood. 2023 Nov 3:blood.2023020857. doi: 10.1182/blood.2023020857. 10.1182/blood.2023020857 PubMed 37922452
